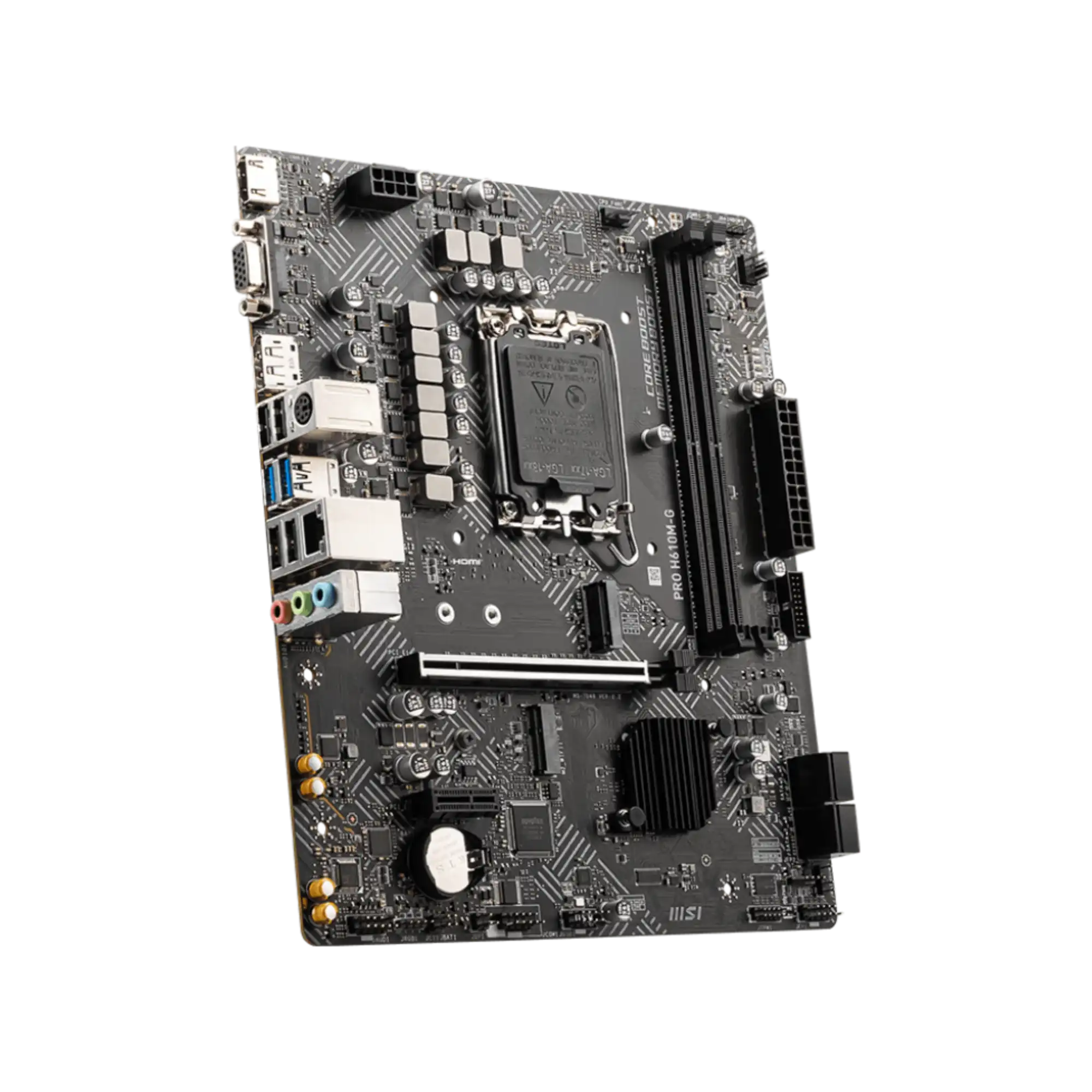

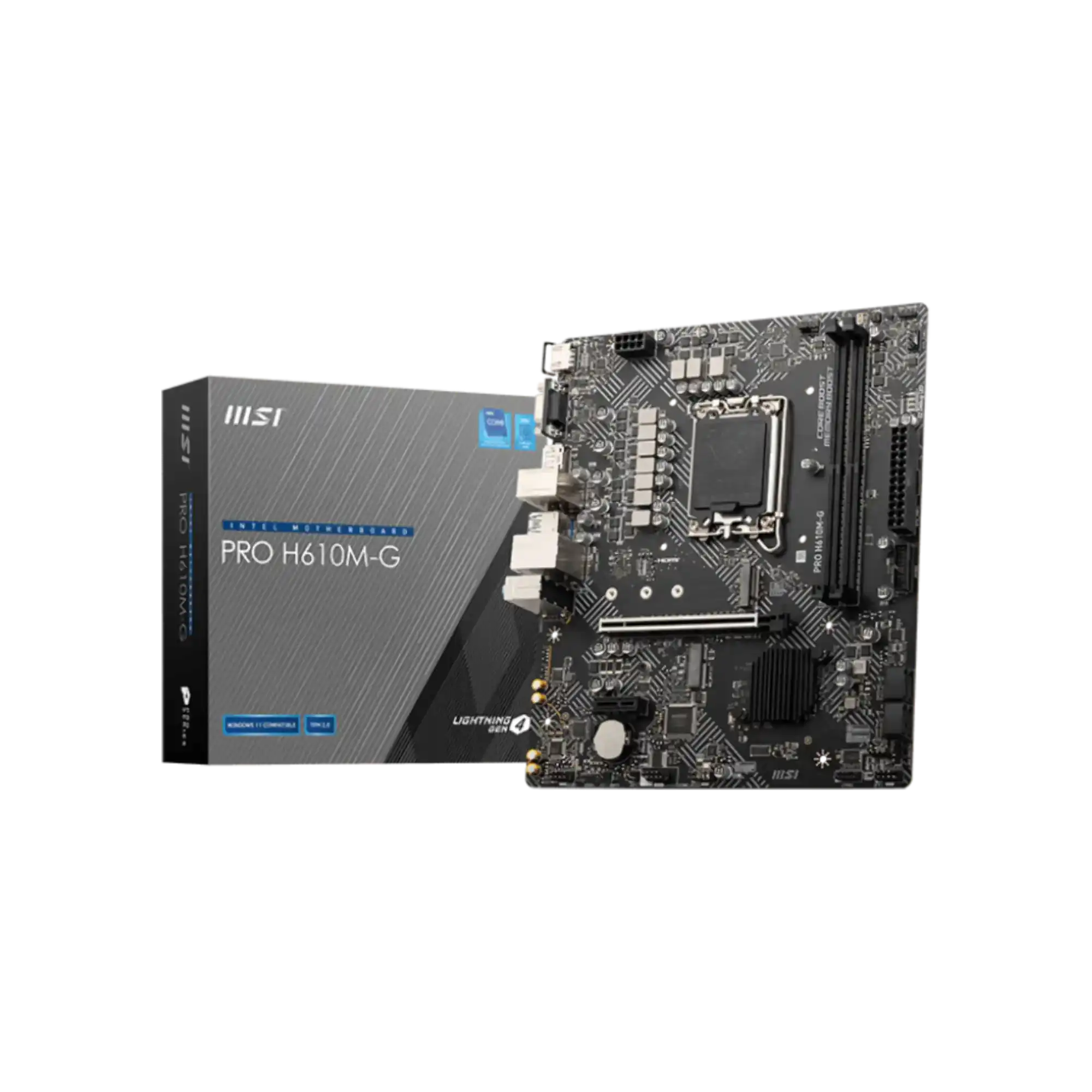

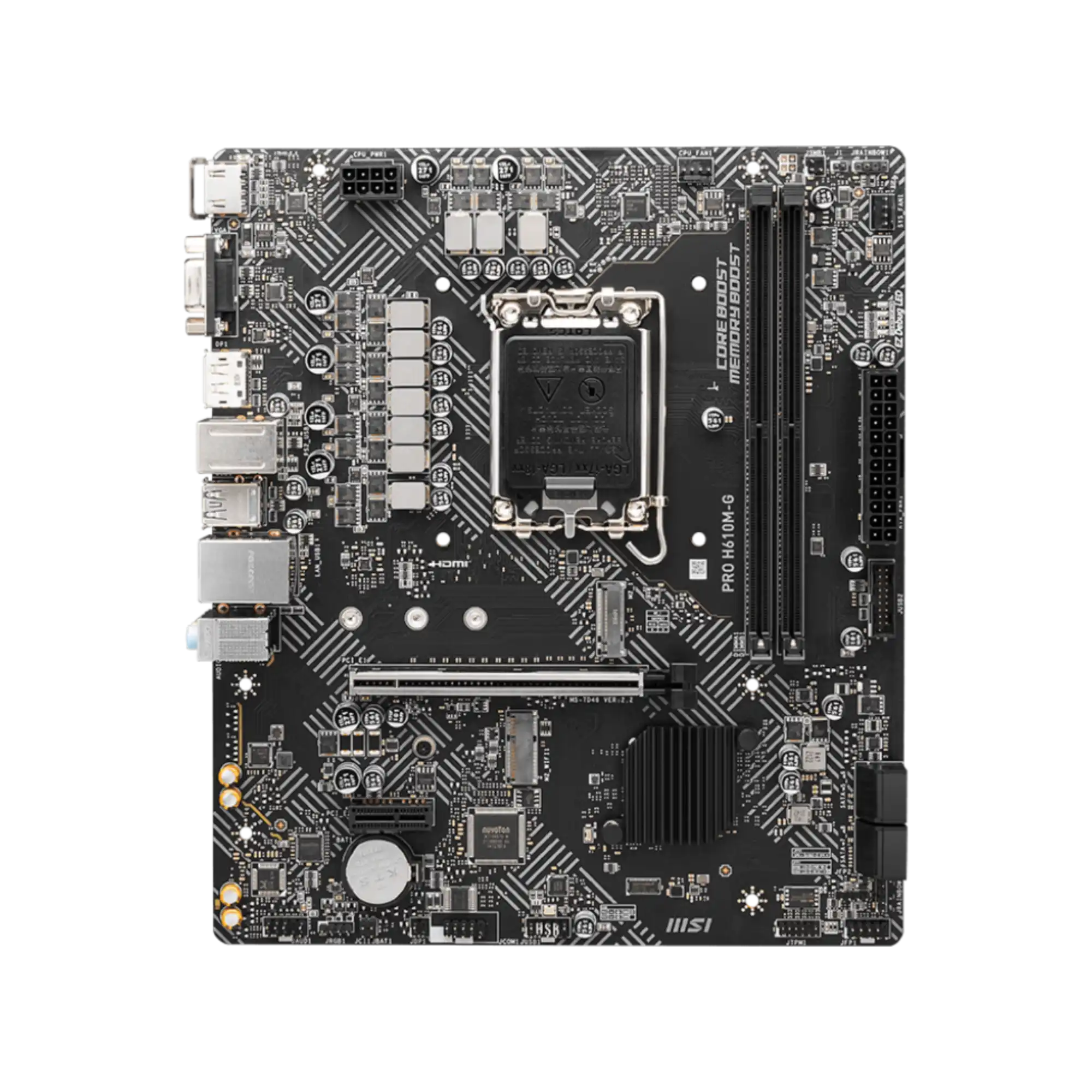

MSI PRO H610M-G DDR5 Micro-ATX Motherboard

৳10,599
৳11,800
  • Chipset: Intel H610
  • Socket: Intel LGA1700
  • M.2 Slot: 1x M.2 (PCIe 3.0 x4/SATA)
  • USB: 6x Rear, 4x Front
  • Memory: 2x DDR5 DIMM, Max. 96GB

Status: Available
SKU: msiproh610m-gddr5
3 Years Brand Warranty
Order Via Messenger
Order Via WhatsApp
Brand MSI
Click ForCompare
Wishlist
1000
Booking Money
100
Purchase Points

Specification

Main Features
CPU

Support Intel Core 14th/13th/12th Gen Processors, Intel Pentium Gold and Celeron Processors
LGA 1700

USB

4x USB 2.0 (Rear)
2x USB 2.0 (Front)
2x USB 5Gbps Type A (Rear)
2x USB 5Gbps Type A (Front)

Audio

Realtek ALC897 Codec
7.1-Channel High Definition Audio

Model

MSI PRO H610M-G DDR5

Memory

2x DDR5
Maximum Memory Capacity 96GB
Memory Support DDR5 5600 MHz (by JEDEC & POR)
Supports Intel XMP 3.0 OC
Supports Dual-Controller Dual-Channel mode
Supports non-ECC, un-buffered memory

Chipset

Intel H610

Storage

1x M.2
M.2_1 Source (From Chipset) supports up to PCIe 3.0 x4 / SATA mode, supports 2280/2260/2242 devices
4x SATA 6G
* SATA7 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.

Ethernet

1x Intel I219V 1Gbps LAN Controller

Graphics

1x HDMI
Support HDMI 2.1, maximum resolution of 4K 60Hz*
1x DisplayPort
Support DP 1.4, maximum resolution of 4K 60Hz*
1x VGA
Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

Warranty

3 Years Brand Warranty

Form Factor

Micro-ATX
8.31 x 9.6 inches

Expansion Slots

1x PCI-E x16 slot
1x PCI-E x1 slot
PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
1x M.2 slot with E-key for PCIe WiFi module only

Operating System

Windows 11, Windows 10

Special Features

1x TPM module connector
4x EZ Debug LED

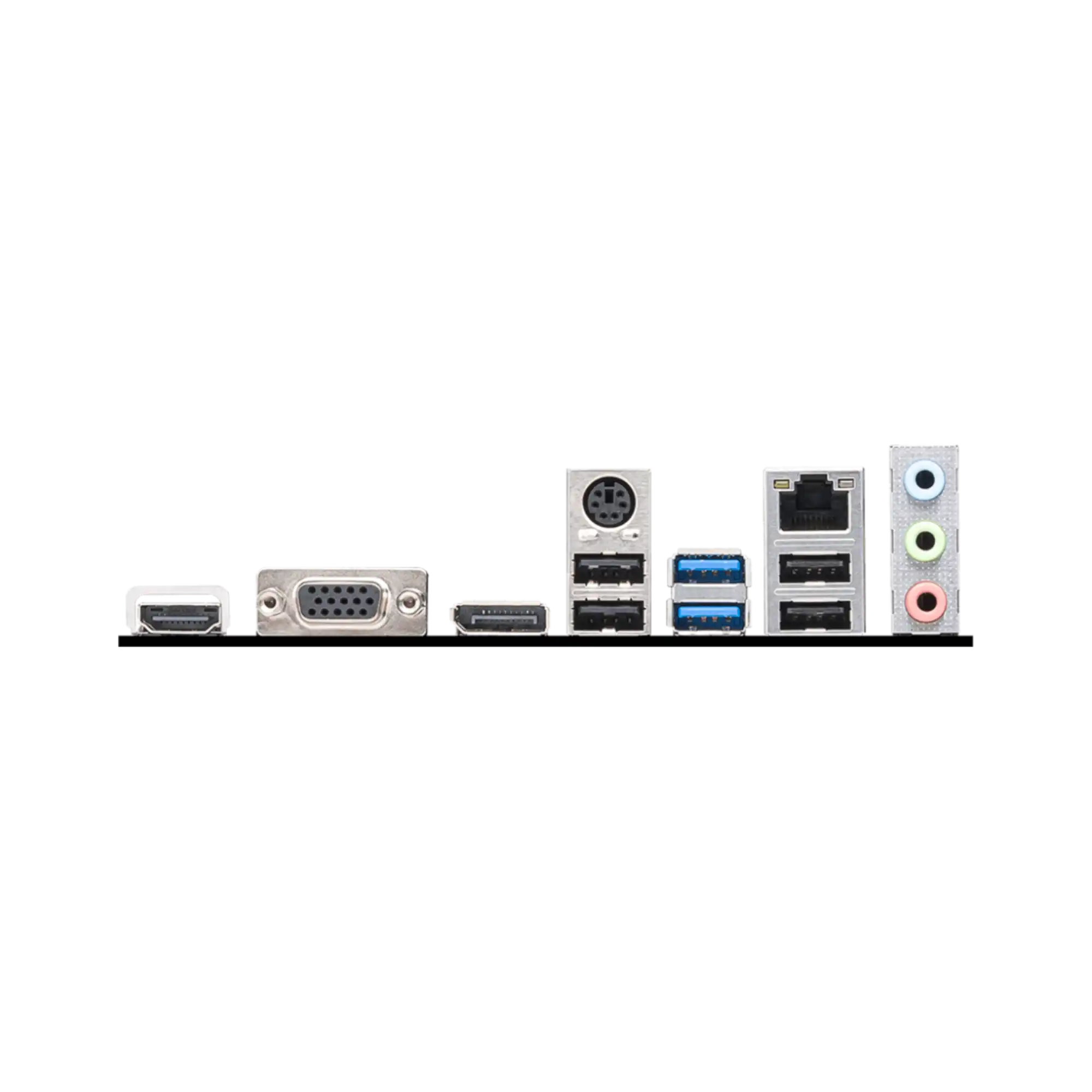

Back Panel I/O Ports

1x HDMI
1x VGA
1x DisplayPort
2x USB 3.2 Gen 1 5Gbps (Type-A)
1x LAN port
1x 3.5mm Audio Connector
4x USB 2.0 (Type-A)

Internal I/O Connectors

1x 24-pin ATX main power connector
1x 8-pin ATX 12V power connector
1x 4-pin CPU fan connector
1x 4-pin system fan connector
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Com Port (JCOM)
2x Addressable RGB LED connector(JRAINBOW)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
2x USB 2.0 ports
2x USB 5Gbps Type A ports
