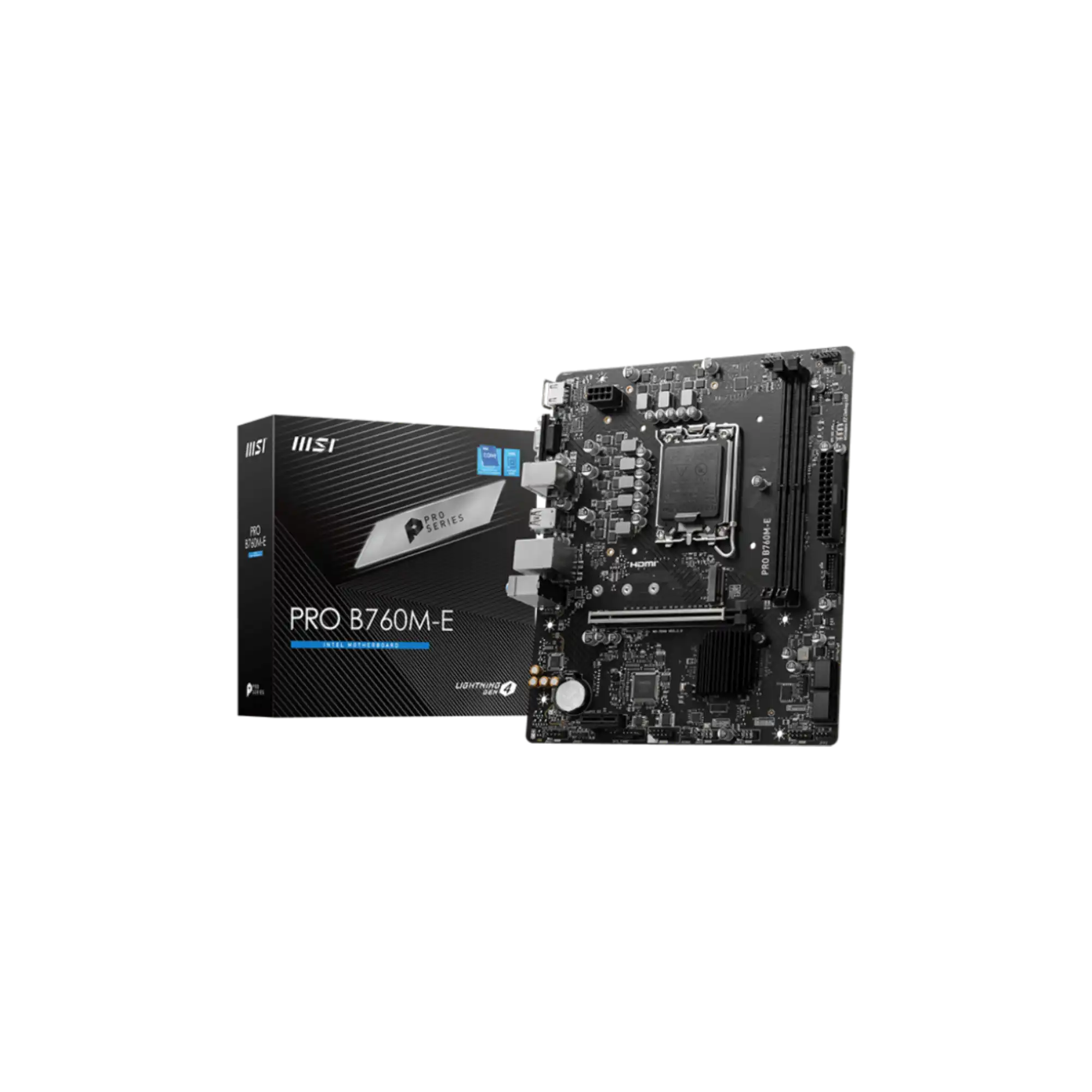

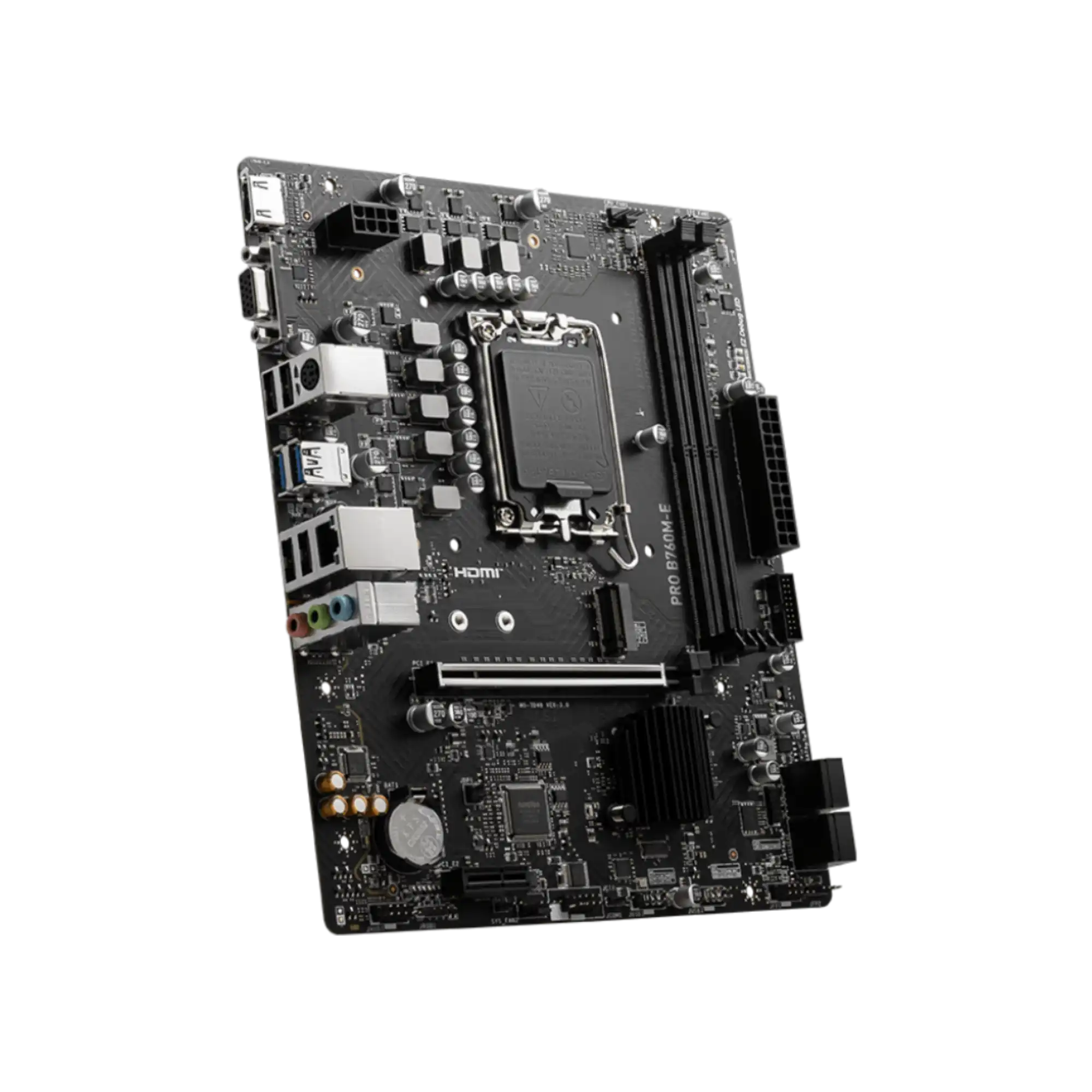

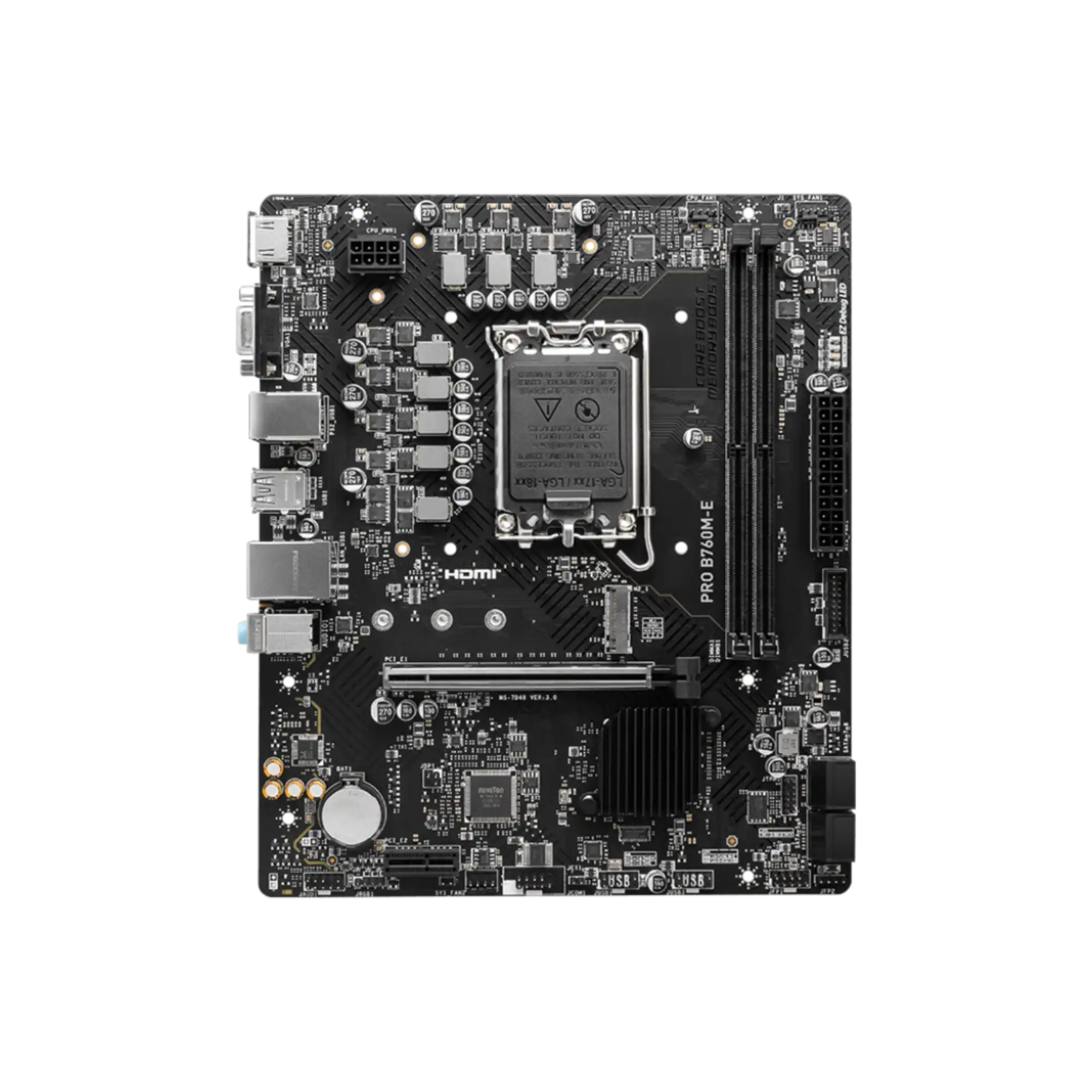

MSI PRO B760M-E DDR5 Micro-ATX Motherboard

Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel® Pentium Gold and Celeron Processors
LGA 1700

4x USB 2.0 (Rear)
4x USB 2.0 (Front)
2x USB 5Gbps Type A (Rear)
2x USB 5Gbps Type A (Front)

Realtek ALC897 Codec
7.1-Channel High Definition Audio

MSI PRO B760M-E

2x DDR5, Maximum Memory Capacity 128GB
Memory Support DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC)
Max. overclocking frequency:
• 1DPC 1R Max speed up to 6400+ MHz
• 1DPC 2R Max speed up to 5600+ MHz

Supports Intel XMP 3.0 OC
Supports Dual-Controller Dual-Channel mode
Supports non-ECC, un-buffered memory

Intel B760

1x M.2
M.2_1 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
4x SATA 6G
* SATA5 will be unavailable when installing M.2 SATA SSD in the M2_1 slot.

Realtek RTL8111H Gigabit LAN

1x HDMI
Support HDMI 1.4 with HDR, maximum resolution of 4K 30Hz*
1x VGA
Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

3 Years Brand Warranty

Micro-ATX
7.87 x 9.3 inches

1x PCI-E x16 slot
1x PCI-E x1 slot
PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)

Support for Windows 11 64-bit, Windows 10 64-bit

1x TPM pin header(Support TPM 2.0)
4x EZ Debug LED
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Supports Intel XMP 3.0 OC and dual-channel mode

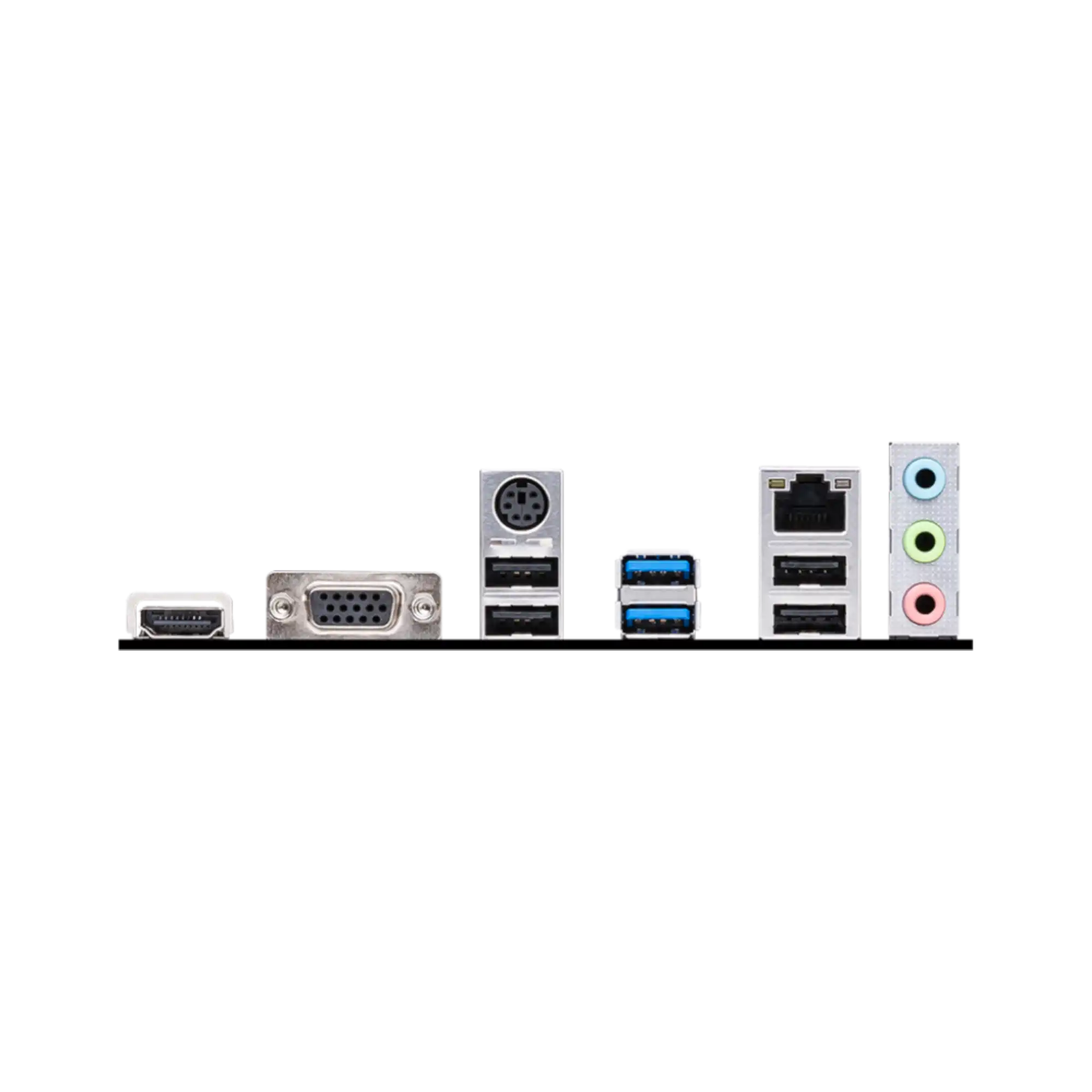

1 x HDMI
1 x VGA
1 x USB 3.2 Gen 1 5Gbps (Type-A)
2 x USB 2.0 (Type-A)
1 x LAN port
1 x Audio Connectors

1x Power Connector(ATX_PWR)
1x Power Connector(CPU_PWR)
1x CPU Fan
2x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Com Port (JCOM)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
2x USB 5Gbps Type A ports
