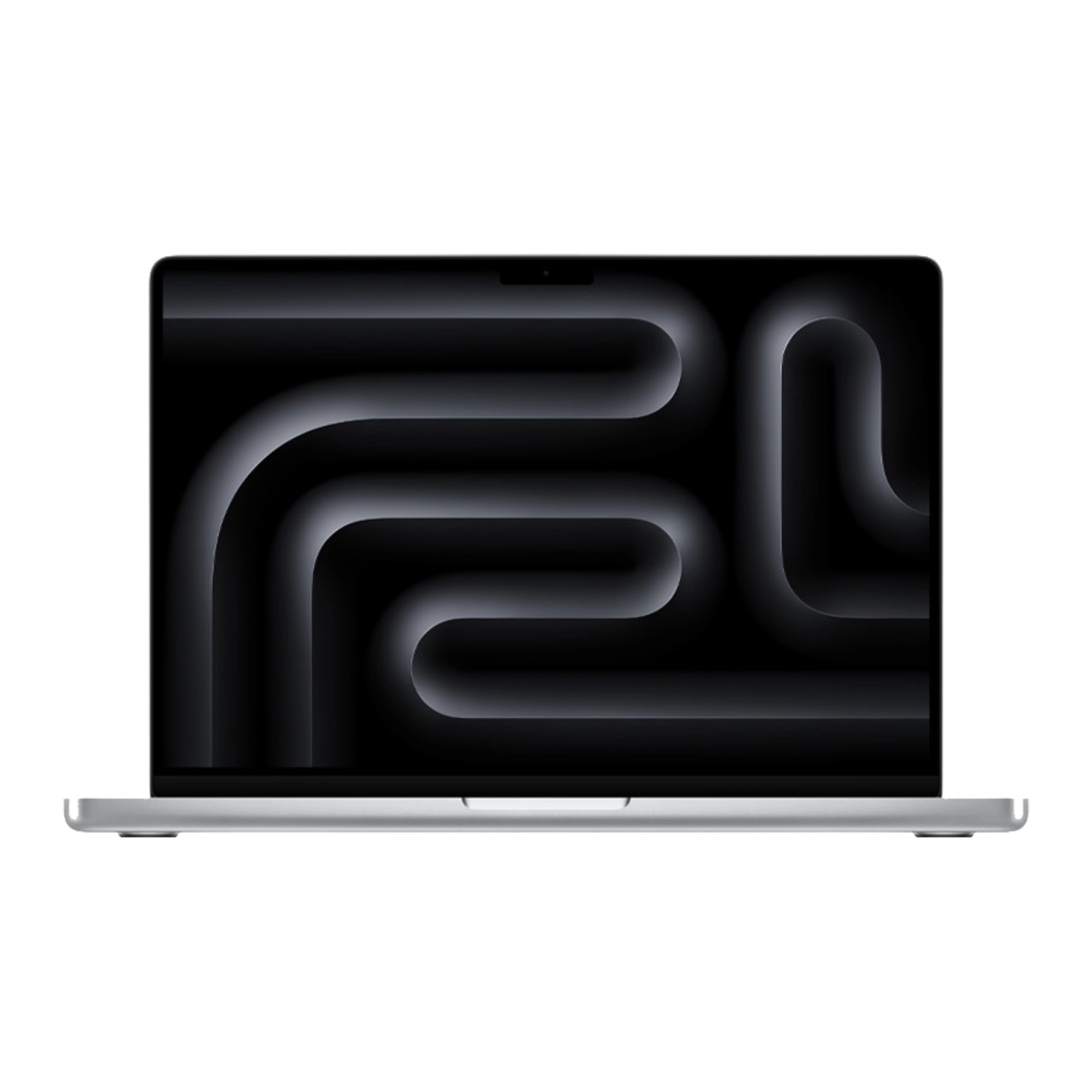

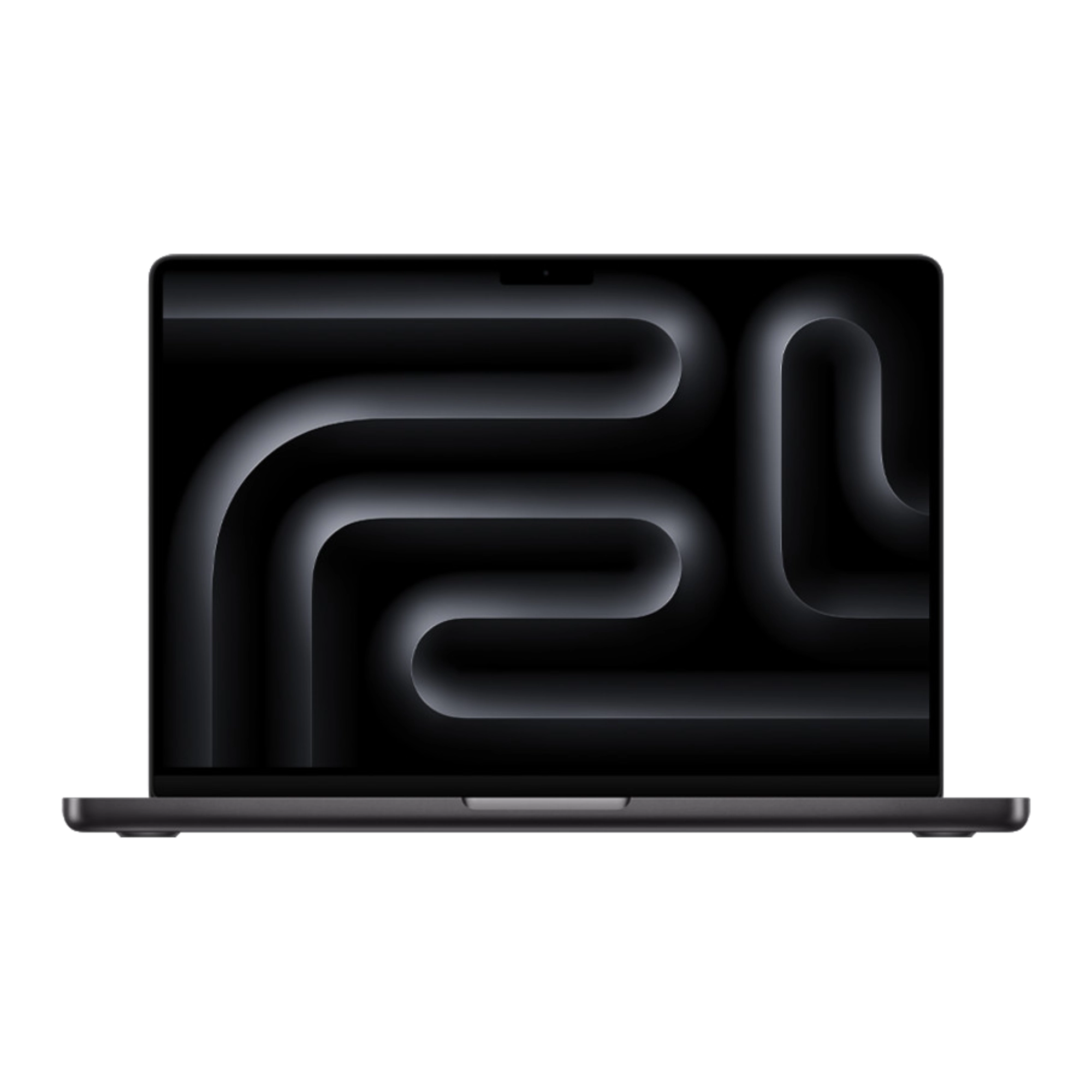

MacBook Pro M5 Max 16"

MacBook Pro M5 Max 16" (2025)

Space Black, Silver

Apple M5 Max

2026

macOS

3456 x 2234

16.2 inches

ProMotion technology for adaptive refresh rates up to 120Hz
Fixed refresh rates: 47.95Hz, 48.00Hz, 50.00Hz, 59.94Hz, 60.00Hz

Supports up to four external displays over any combination of Thunderbolt and HDMI ports:

Four displays up to a native resolution of 6K at 60Hz or 4K at 144Hz or
Two displays up to a native resolution of 8K at 60Hz or 5K at 120Hz or 4K at 240Hz


Supports up to four external displays over a single Thunderbolt port

Simultaneously supports the built-in display at full native resolution

Thunderbolt 5 (USB-C) ports support native DisplayPort 2.1 speeds

XDR brightness: 1000 nits sustained full-screen, 1600 nits peak (HDR content only)
SDR brightness: up to 1000 nits (outdoor)

254 pixels per inch
1,000,000:1 contrast ratio
1 billion colors
Wide color (P3)
True Tone technology
Configurable with Nano-texture display

Liquid Retina XDR

16-core Neural Engine

36GB unified memory
Configurable to 48GB, 64GB, 128GB

Apple M5 Max

2TB SSD
Configurable to 4TB or 8TB

Neural Accelerators
Hardware-accelerated ray tracing
460GB/s memory bandwidth (32‑core GPU)
614GB/s memory bandwidth (40‑core GPU)

18‑core CPU with 6 super cores and 12 performance cores

32/40-core GPU

Hardware-accelerated H.264, HEVC, ProRes and ProRes RAW
Video decode engine
Two video encode engines
Two ProRes encode and decode engines
AV1 decode

Wi-Fi 7 (802.11be)

Bluetooth 6

1 x HDMI port

1 x SDXC card slot

1 x 3.5 mm headphone jack

Three Thunderbolt 5 (USB-C) ports with support for:

Charging
DisplayPort
Thunderbolt 5 (up to 120Gb/s)
USB 4 (up to 120Gb/s)

12MP Center Stage camera with support for Desk View
1080p HD video recording
Advanced image signal processor with computational video

High-fidelity six-speaker sound system with force-cancelling woofers

Studio-quality three-mic array with high signal-to-noise ratio and directional beamforming

Wide stereo sound
Support for Spatial Audio when playing music or video with Dolby Atmos on built-in speakers
Spatial Audio with dynamic head tracking when using supported models of AirPods, AirPods Pro, and AirPods Max
3.5 mm headphone jack with advanced support for high-impedance headphones
HDMI port supports multichannel audio output

Touch ID

Force Touch trackpad for precise cursor control and pressure-sensing capabilities; enables Force clicks, accelerators, pressure-sensitive drawing, and Multi-Touch gestures

Backlit Magic Keyboard with:
78 (U.S.) or 79 (ISO) keys including 12 full-height function keys and 4 arrow keys in an inverted‑T arrangement

140W USB-C Power Adapter
USB-C to MagSafe 3 Cable (2m)
Fast-charge capable with included 140W USB-C Power Adapter

Up to 22 hours video streaming
Up to 16 hours wireless web

100-watt-hour lithium-polymer battery

Space Black, Silver

2.15kg

The 16‑inch MacBook Pro is made with 45% recycled content,12 including:

100% recycled aluminium in the enclosure and thermal module stage
100% recycled cobalt and 95% recycled lithium in the battery
100% recycled copper in multiple printed circuit boards and thermal module components
100% recycled gold plating and tin solder in all Apple-designed printed circuit boards
100% recycled rare earth elements in all magnets
80% or more recycled steel in the keyboard feature plate and speaker components

14.00 x 9.77 x 0.66 inches
