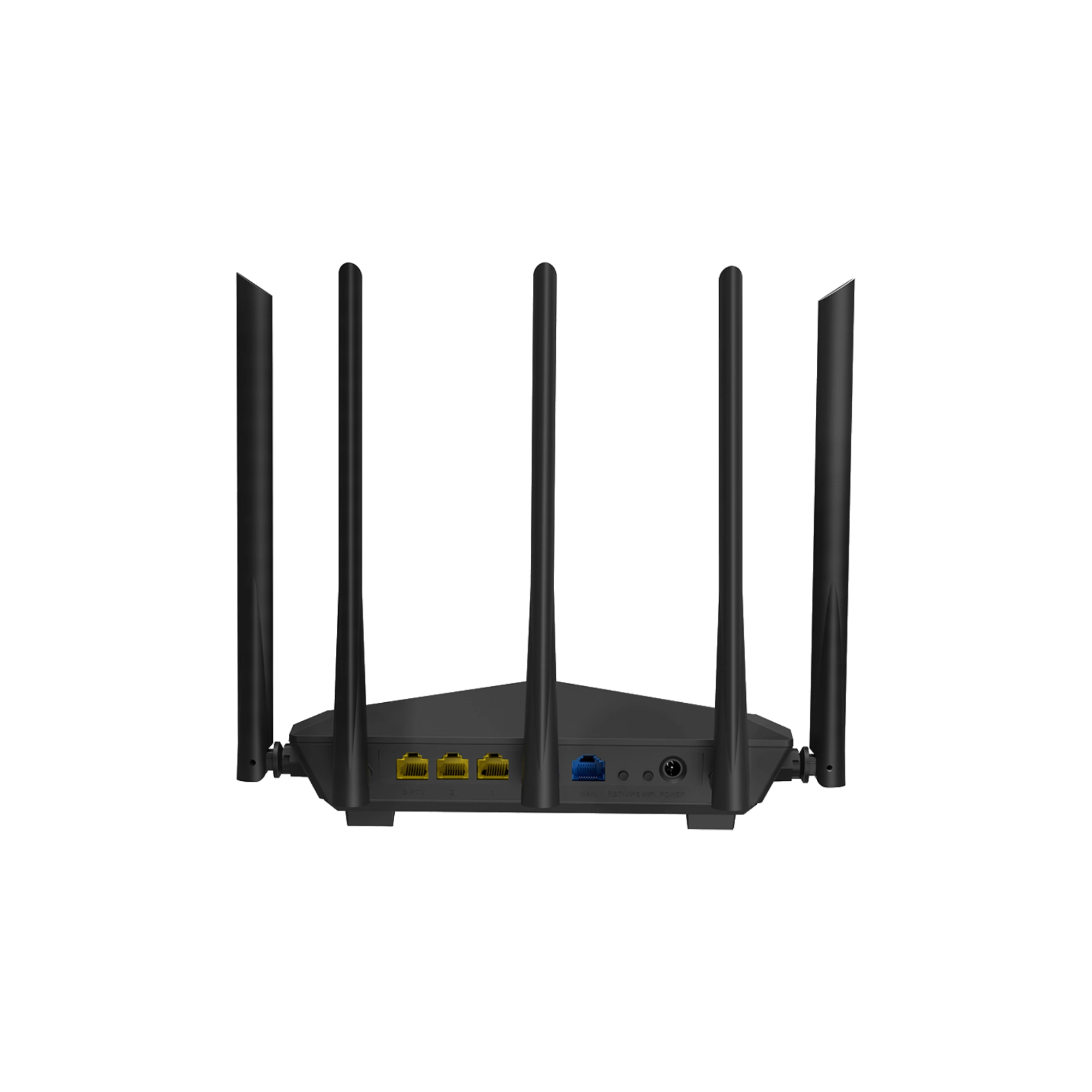

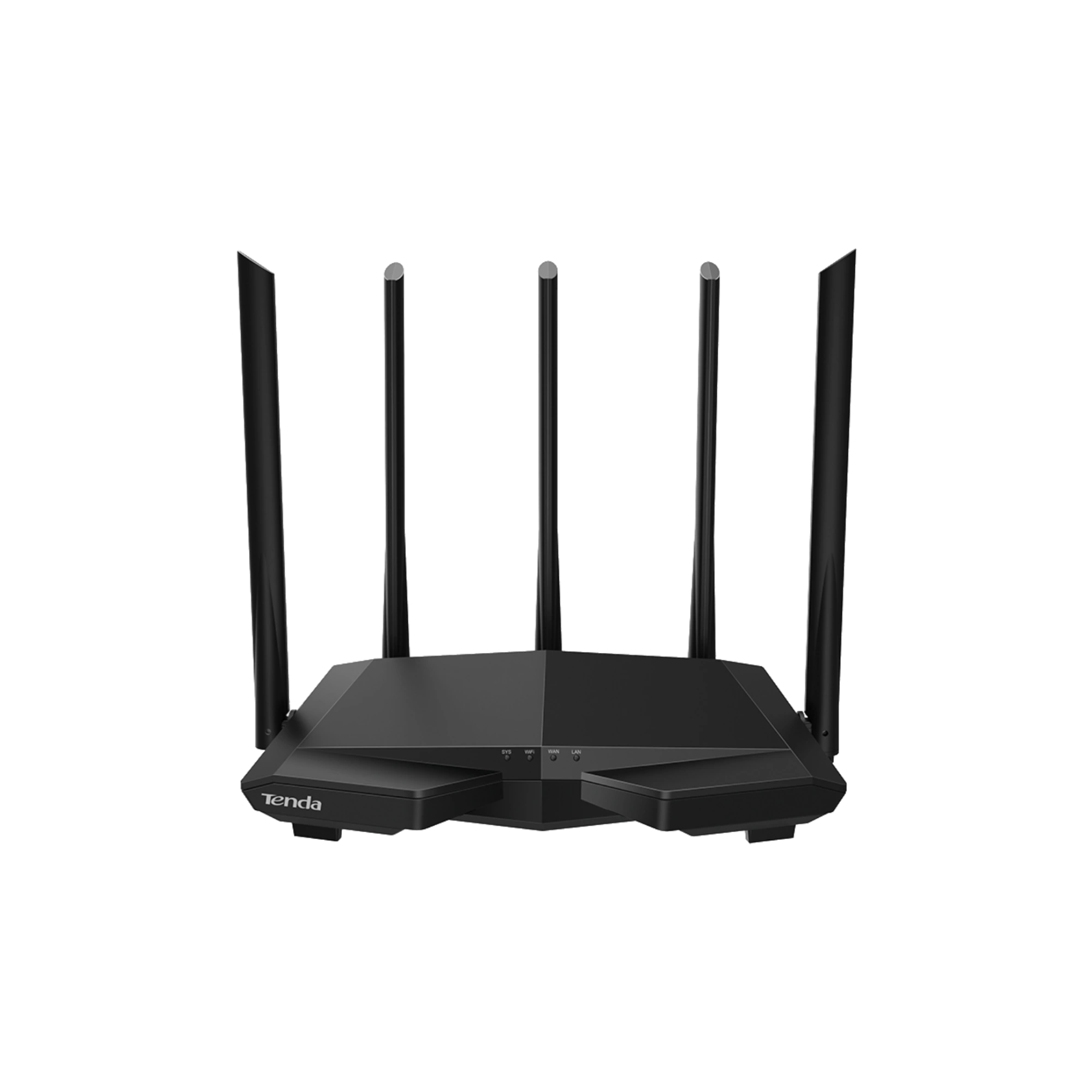

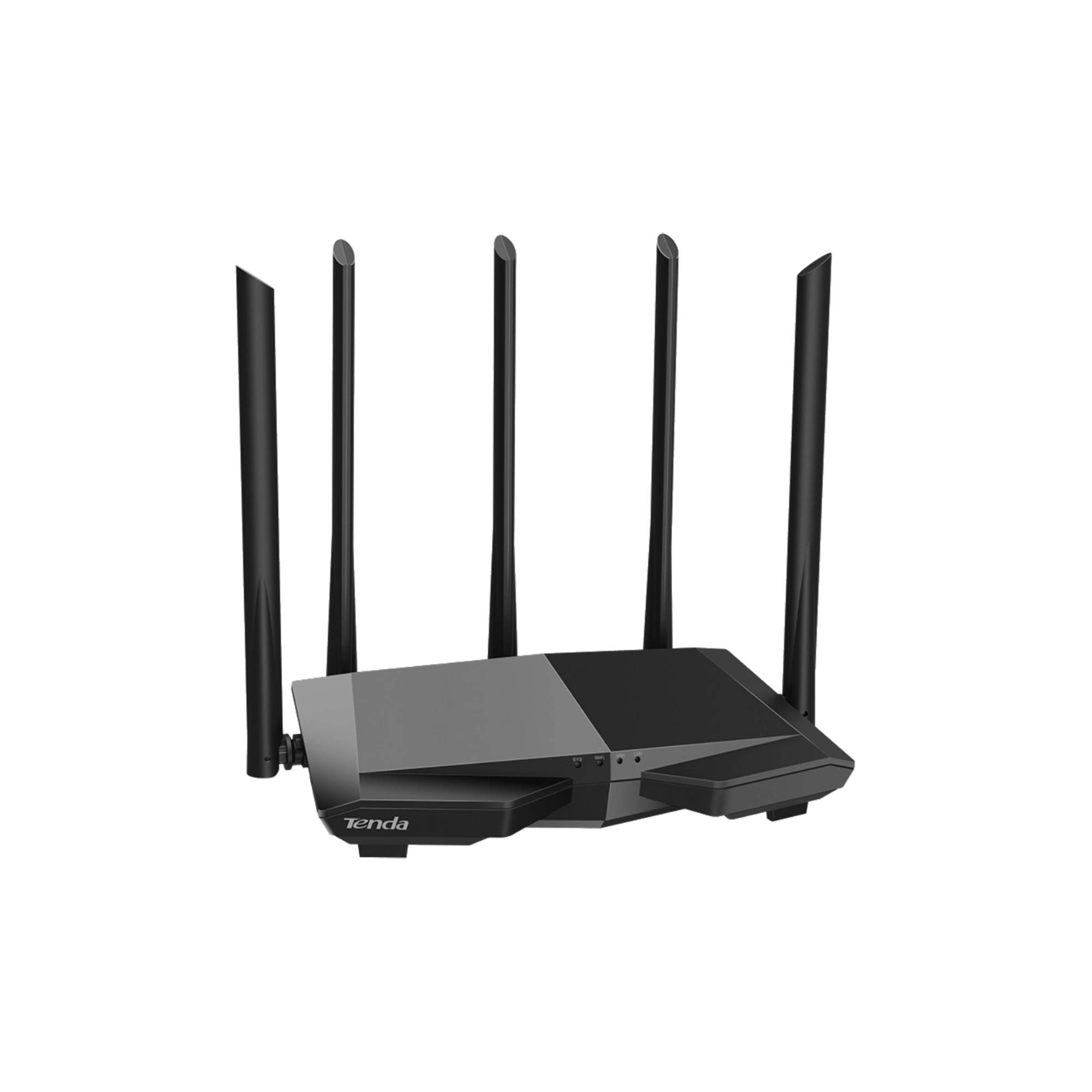

Tenda AC7 AC1200 Dual Band Wi-Fi Router

8.66 x 5.57 x 1.93 inches

1 x Wi-Fi/Reset button

28nm high-performance chip
MU-MIMO, Bandwidth Control, Tenda WiFi App, VPN Support
Internet Connection Type
PPPoE, Dynamic IP, Static IP
PPPoE(Russia), PPTP(Russia), L2TP(Russia)

Network Protocol
IPv4&IPv6

Operating Mode
Router Mode
AP Mode
Universal Repeater Mode（Client+AP,WISP）


5 x 5dBi external antennas

5GHz: 867Mbps
2.4GHz: 300Mbps

CE:
2.4G: 2412-2472MHz(CH1-CH13)
5G: 5150-5250MHz(CH36-CH64)
FCC:
2.4G: 2412-2462MHz(CH1-CH11)
5G: 5150-5250MHz(CH36-CH64)
5725-5825MHz(CH149-CH165)

1 x 10/100Mbps WAN port
3 x 10/100Mbps LAN ports

WPA2-PSK
Wireless Security: Enable /Disable

IEEE 802.11ac/a/n @5GHz
IEEE 802.11b/g/n @2.4GHz

Parental Control
Client Filter
URL Filter
Time Limit

DHCP
DHCP Server
DHCP Client List
DHCP Static IP Address Reservation and Allocation

Virtual Server
Port Forwarding, DMZ Host, UPnP

Firewall
ICMP Flood Attack Defense
TCP Flood Attack Defense
UDP Flood Attack Defense
Block Ping From WAN

DDNS
DynDNS, no-ip, oray, 88ip

VPN
IPsec pass through
PPTP pass through
L2TP pass through

Special Features
Guest Network
IPTV
Signal Adjustment

Basic Functions
PPPoE Username/password Clone
Smart WiFi Schedule
Smart Power Saving
Smart LED on/off
Tenda App
Dual-band in One
IPv6 Features Supported
Broadband management
MAC address clone
Backup & Restore configurations
Firmware upgrade from local

Input: 100-240V—50/60Hz 0.4A
Output: DC 9V1A
