| OS | Windows 11 Home |
|---|---|

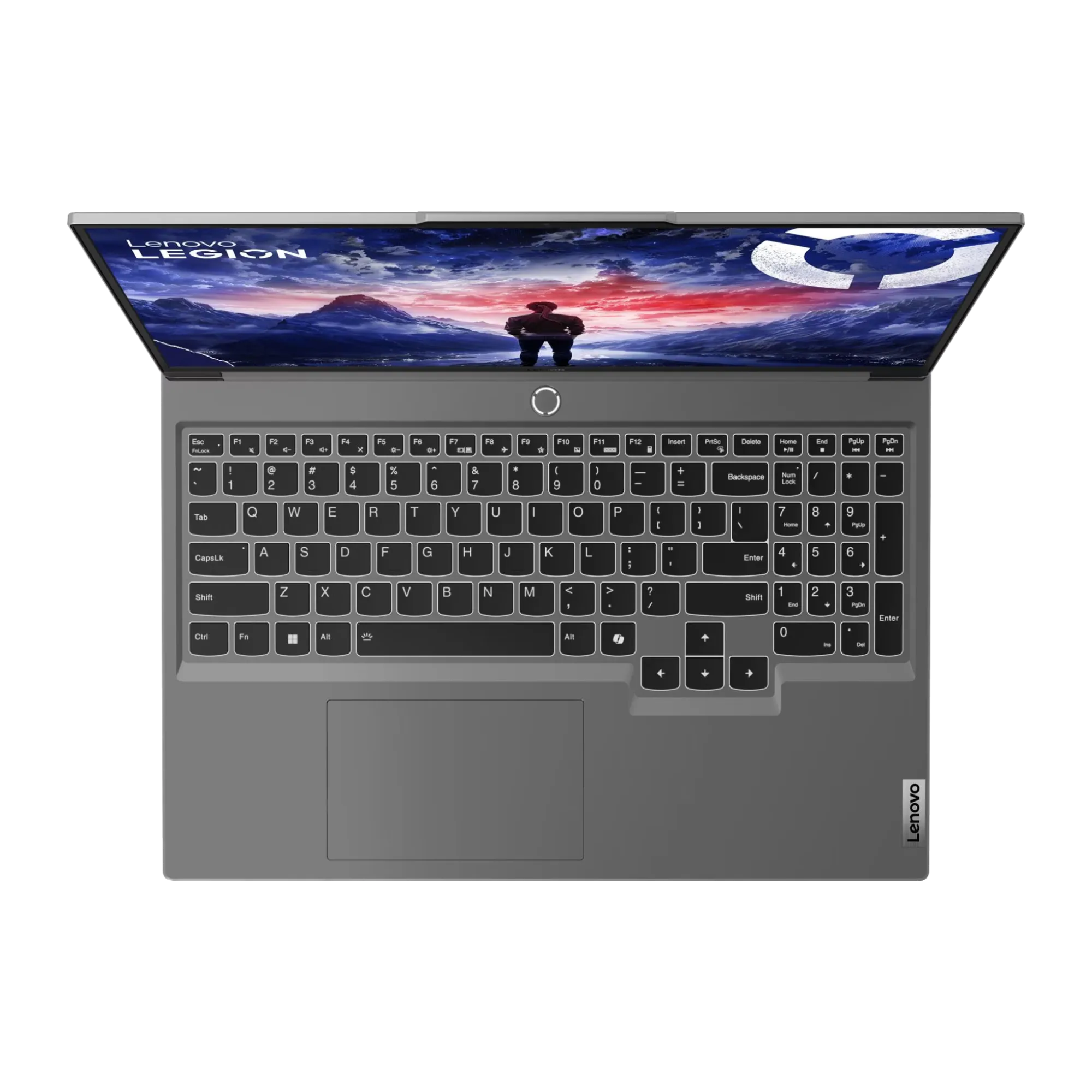

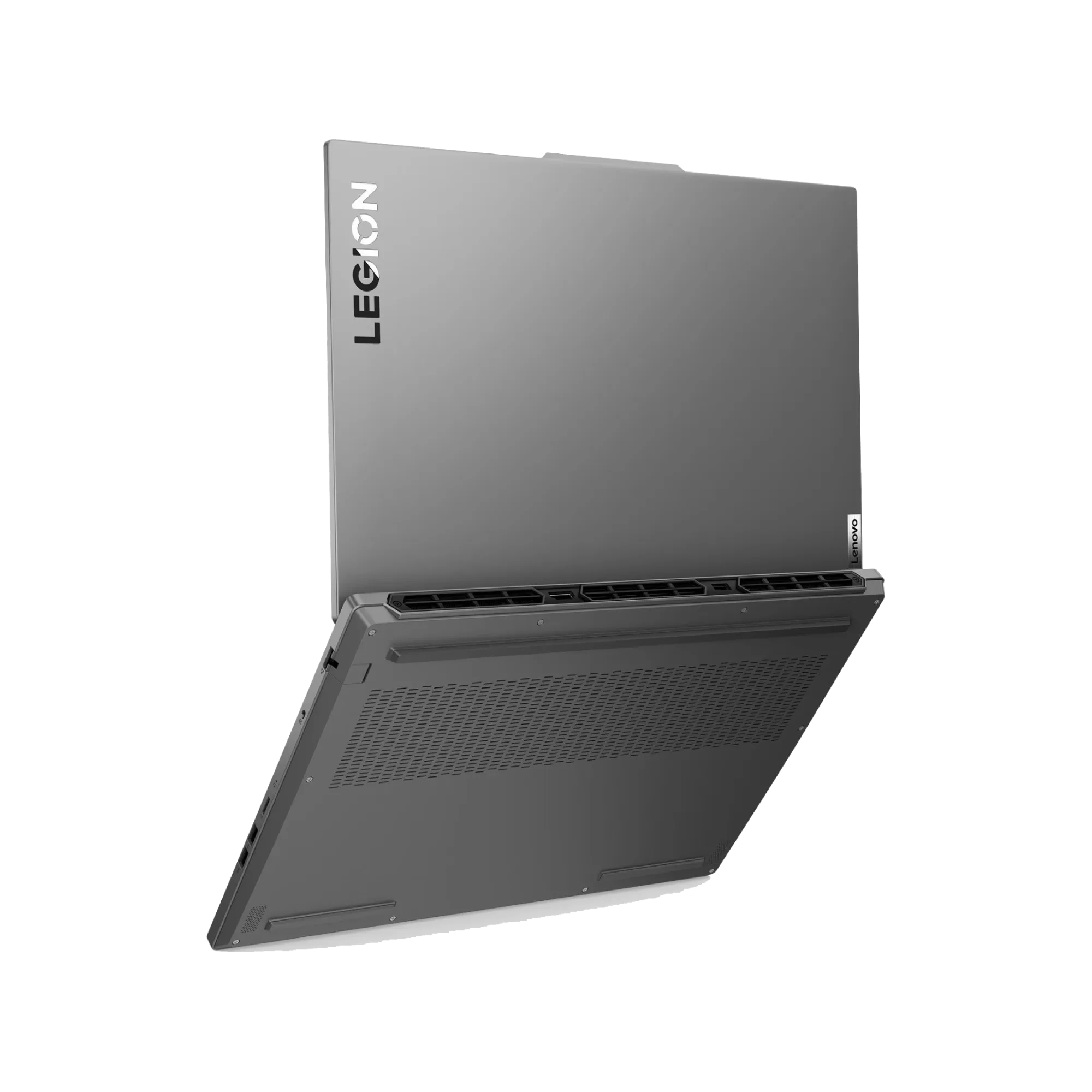

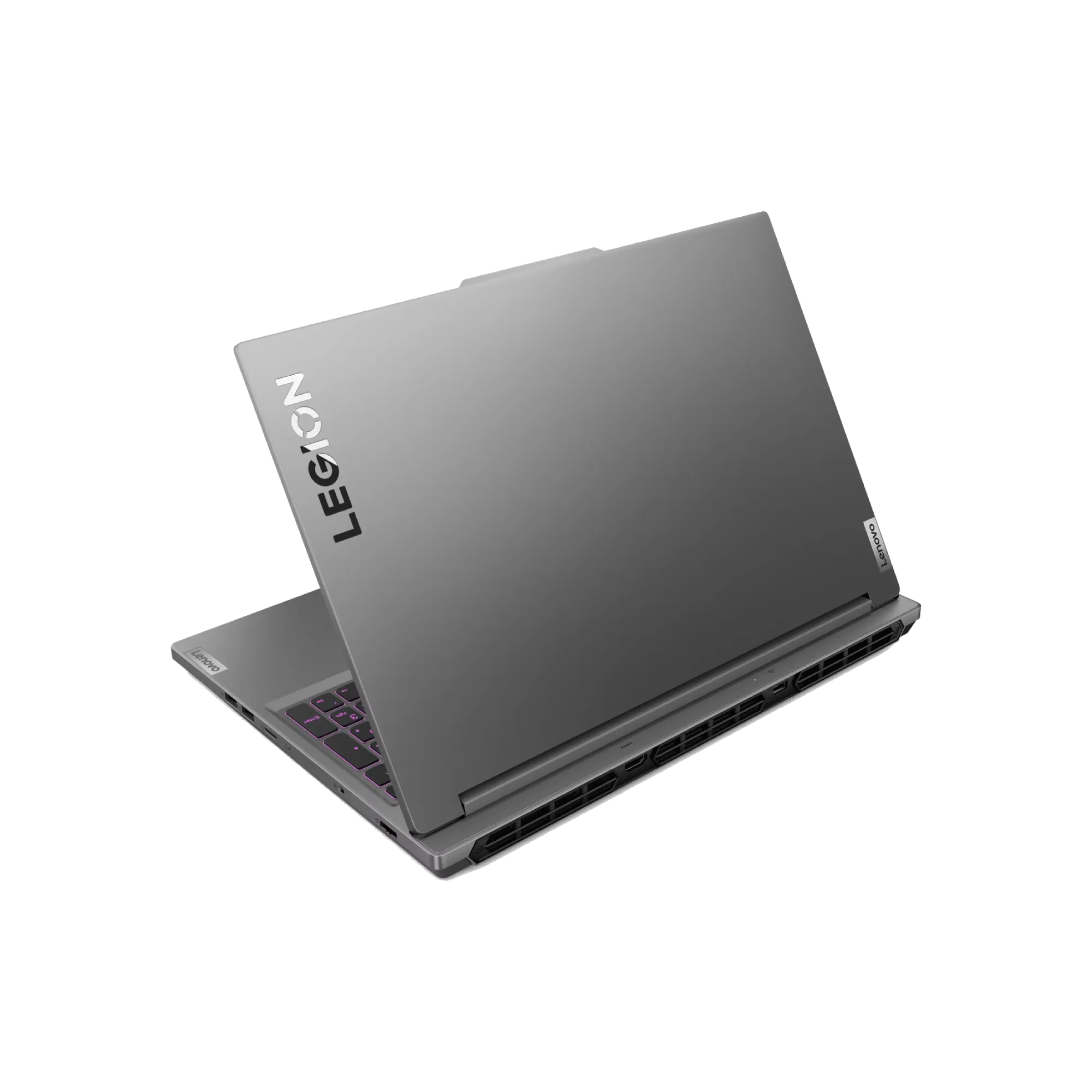

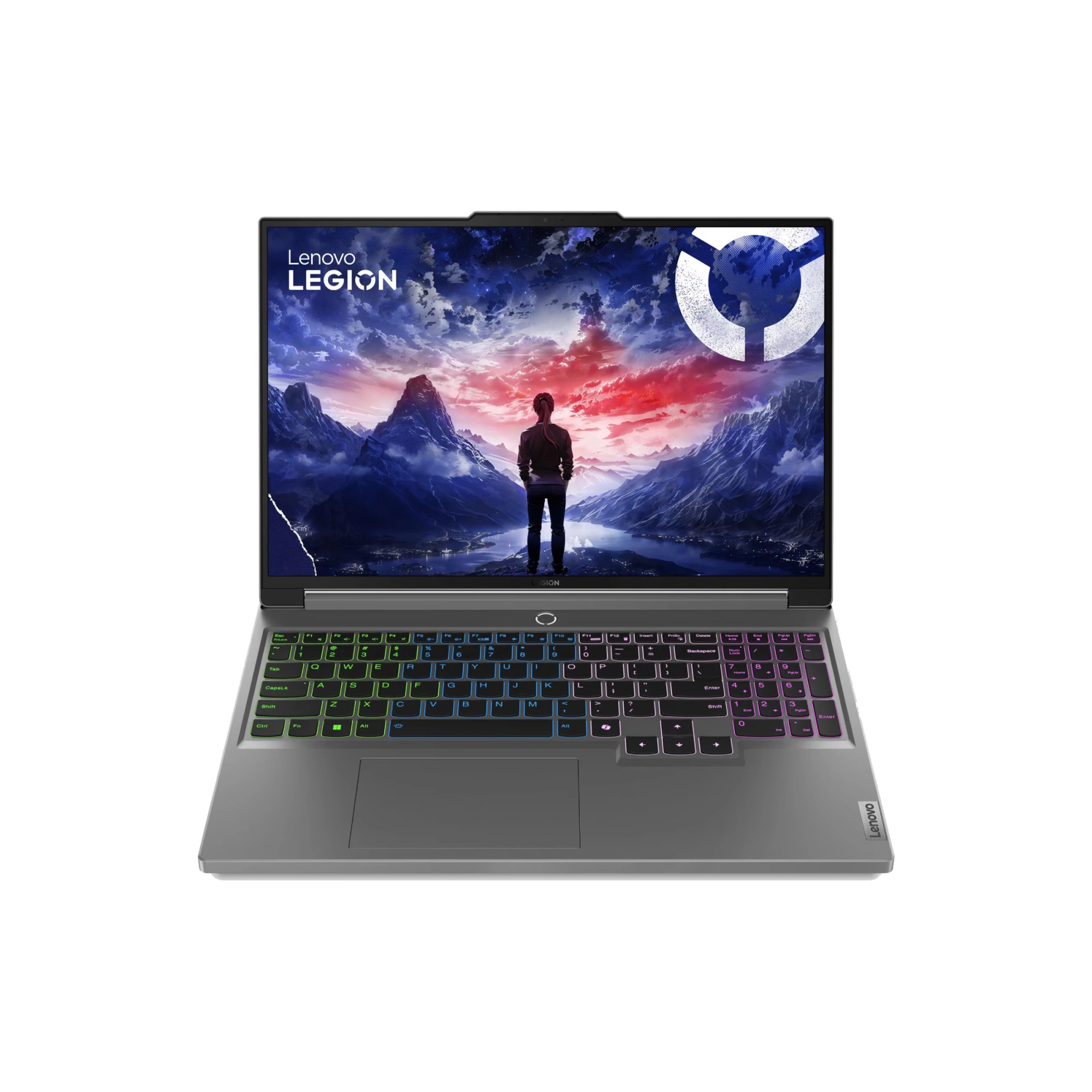

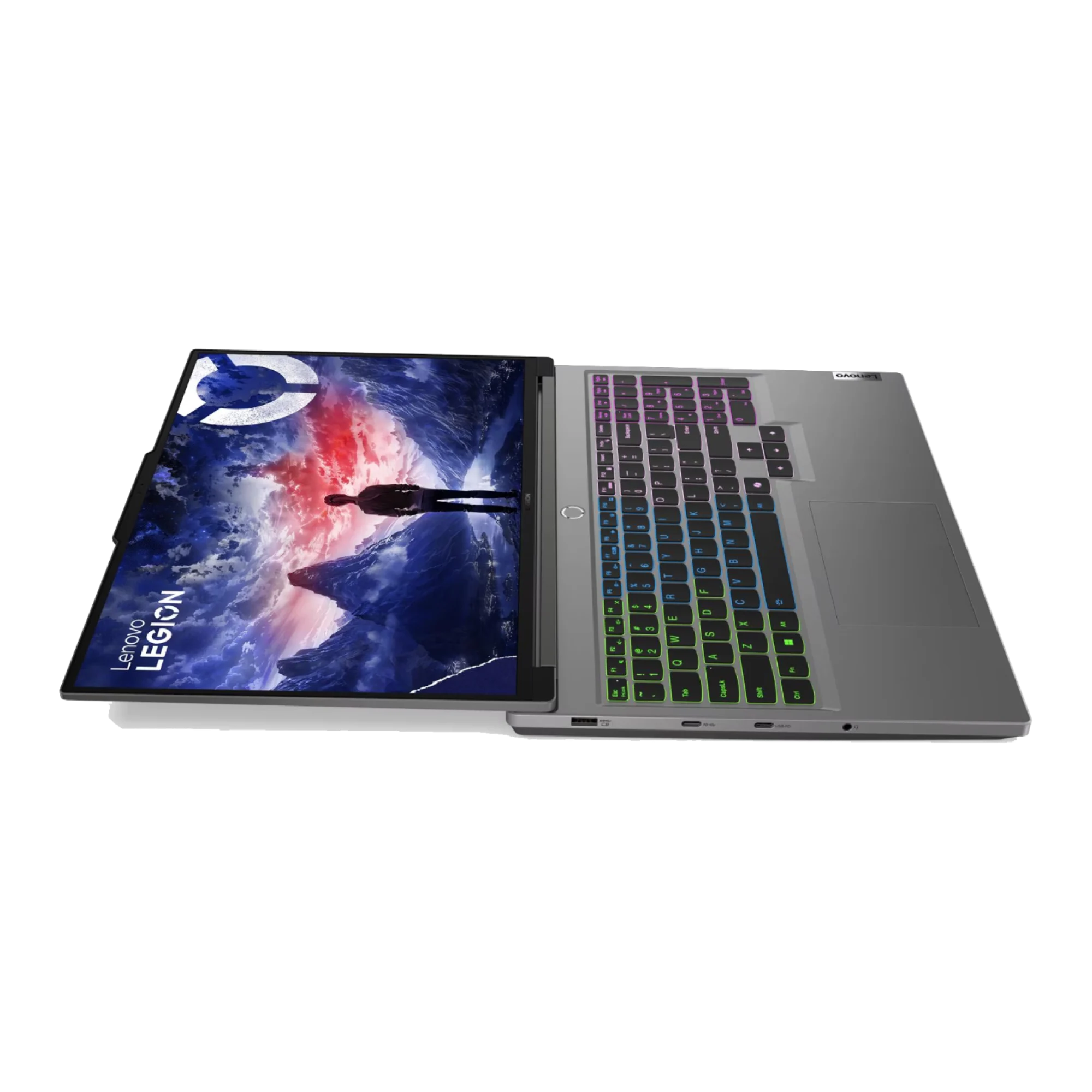

| Model | Lenovo Legion 5 16IRX9 83DG009SUS | Luna Grey |
| Memory | 16GB SO-DIMM DDR5 RAM |
| Weight | Around 2.36 kg |
| Storage | 1TB M.2 NVMe SSD |
| Warranty | 1 Year Parts & 2 Years Service Warranty |
| Dimension | 14.16 x 10.33 x 0.78-0.99 inches |
| Core | 16 |
|---|---|
| Brand | Intel |
| Cache | 30MB |
| Model | Core i7-14650HX |
| Thread | 24 |
| Frequency | 2.2 GHz (Up to 5.2 GHz) |
| Type | M.2 NVMe PCIe 4.0 SSD |
|---|---|
| Upgrade | Up to two drives, 2x M.2 SSD |
| Capacity | 1TB |
| Extra Slot | 2 x M.2 2280 PCIe 4.0 x4 slots (1 already used) |
| Ram | 16GB (2 x 8GB) |
|---|---|
| Type | SO-DIMM DDR5 |
| Upgrade | Yes |
| Bus Speed | 5600 MHz |
| Maximum Ram | 64GB |
| Total Ram Slot | 2 x DDR5 SO-DIMM slots, dual-channel capable |
| Size | 16 inches |
|---|---|
| Type | IPS |
| Resolution | 2560x1600 |
| Display Features | Anti-glare |
| Max Refresh Rate | 165 Hz |
| Model | NVIDIA GeForce RTX 4060 8GB |
|---|---|
| Features | Boost Clock 2370MHz |
| Memory Type | Dedicated GDDR6 |
| Type | 4-Zone RGB Backlit Keyboard |
|---|---|
| TouchPad | Buttonless Mylar surface multi-touch touchpad (2.95 x 4.72 inches) |
| Webcam | FHD 1080p with E-shutter |
|---|---|
| Speaker | Stereo speakers, 2x 2W |
| Microphone | Dual-Array Microphones |
| HDMI | 1 x HDMI 2.1, up to 8K/60Hz |
|---|---|
| USB Port | 2 x USB-A (USB 5Gbps/USB 3.2 Gen 1) |
| Card Reader | 1 x Card reader |
| PD Charging | PD 140W |
| Display Port | DisplayPort 1.4 |
| Headphone Microphone | 1 x 3.5mm headphone/microphone combo jack |
| USB Type-C/Thunderbolt | 1 x USB-C (USB 10Gbps/USB 3.2 Gen 2) |
| LAN | 1 x RJ-45 |
|---|---|
| Wi-Fi | Wi-Fi 6E, 802.11ax 2x2 |
| Bluetooth | Bluetooth 5.2 |
| Type | Rechargeable Li-ion |
|---|---|
| Adapter | 230W slim tip (3-pin) AC adapter, 100-240V, 50-60Hz |
| Capacity | 80Wh |
| Battery Life | MobileMark 2018: 5.7 hours |
