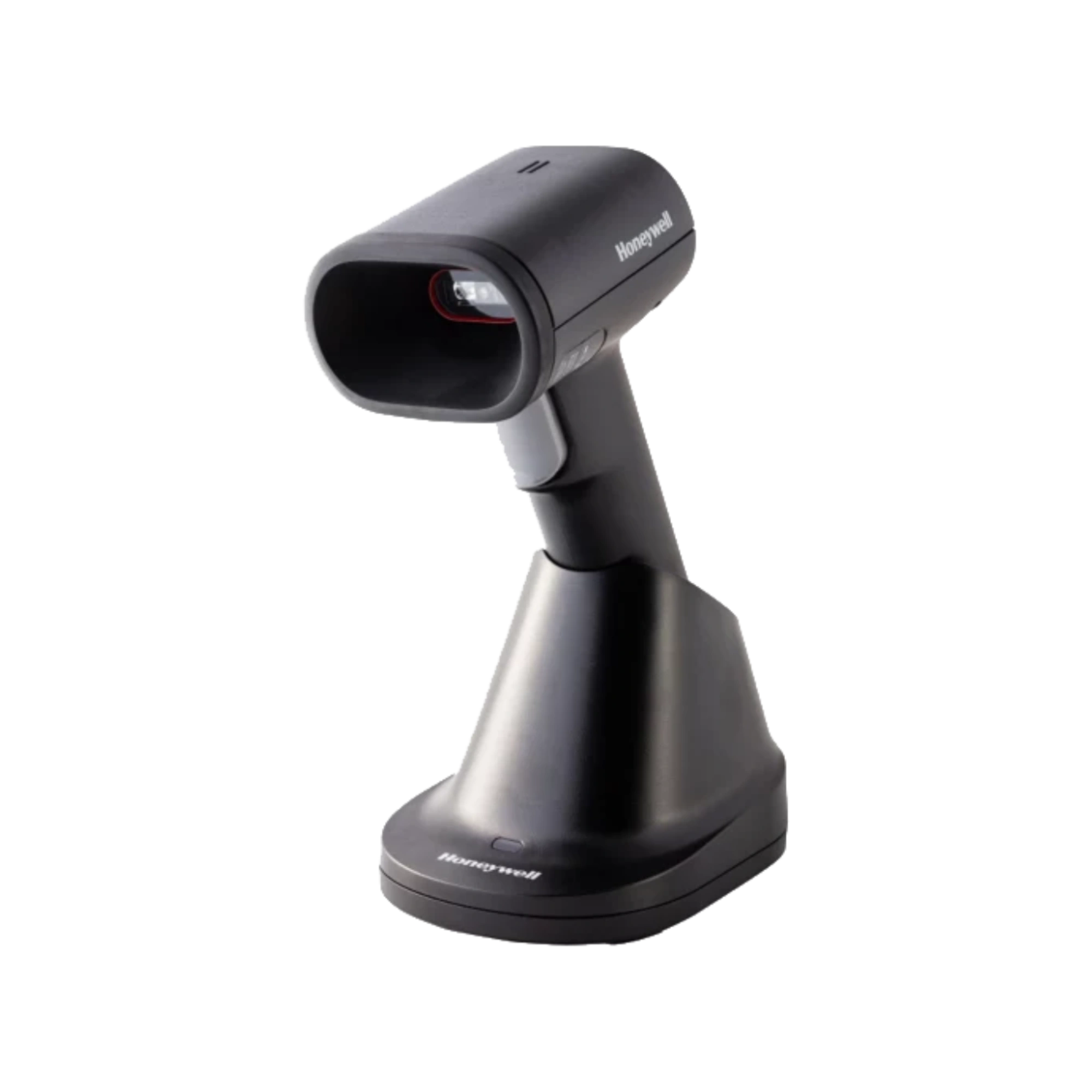

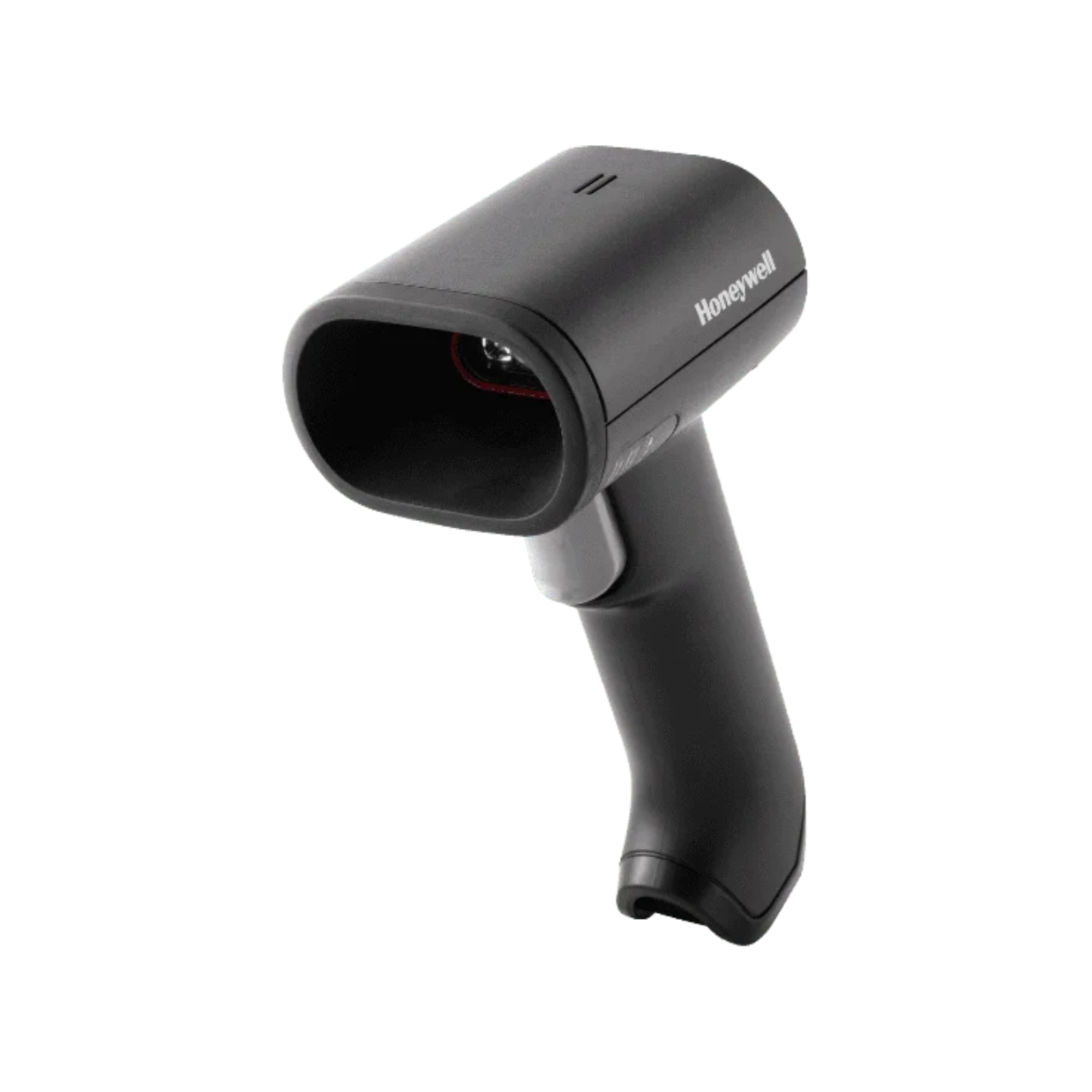

Honeywell HH492 Barcode Scanner

High-Performance Wireless Scanner with Bluetooth 5.0

Discover unparalleled efficiency and performance with our cutting-edge wireless scanner, designed to meet the rigorous demands of various industries including manufacturing, retail, and transportation & logistics (T&L). This advanced scanner combines robust specifications with user-friendly features, making it the ideal choice for modern businesses.

Dimensions and Build

• Overall Dimensions:
  • Charger/Communication Base: 130 mm x 86 mm x 85 mm (5.1 in x 3.4 in x 3.3 in)
  • Scanner: 64 mm x 166 mm x 84 mm (2.5 in x 6.5 in x 3.3 in)
• Form Factor: Designed for ease of use with a compact charger and communication base, ensuring a sleek setup.


Scanning Specifications

• Scanning Range:
  • Maximum: 400 mm for 13 mil UPC
  • Minimum: 5 mm for 20 mil QR
• Scan Pattern: Utilizes an Area Imager CMOS (1040 x 720 pixel array) for high-precision scanning.
• Motion Tolerance: 25 cm/s (9.8 in/s) for 13 mil UPC at optimal focus.
• Decode Capability: Supports 1D, 2D, DotCode, and PDF for versatile scanning needs.
• Depth of Field: Up to 400 mm for 13 mil UPC.
• Number of Scans: Capable of performing up to 50,000 scans per charge, ensuring long-lasting operation.


Network and Connectivity

• Bluetooth Specifications: Equipped with Bluetooth 5.0 for fast and reliable wireless communication.
• Bluetooth Enabled: Yes, providing seamless integration with various devices.


Hardware and Electrical Specifications

• Wireless Capability: Yes, enhancing mobility and convenience.
• Engine Type: Area Imager Scanning for superior accuracy and speed.
• Host Interface: Supports HID and USB for versatile connectivity options.
• Aimer Type: Area Imager, ensuring precise targeting during scanning.
• Battery Types: Powered by a durable Li-Ion battery.
• Battery Capacity: 2730 mAh, offering extended use between charges.
• Operating Power:
  • 2.5 W (500 mA @ 5V USB input)
  • 5 W (1000 mA @ 5V Adaptor input)


Environmental Standards

• Storage Temperature Range:
  • Scanner/Communication Base: -40°C to 60°C (-40°F to 140°F)
• Operating Humidity: 0% to 95% relative humidity, non-condensing.


Standards and Approvals

• Specifications:
  • Communication Base: Survives drops from 1.0 m (3.3 ft) onto a concrete floor.
  • Scanner: Survives drops from 1.5 m (4.9 ft) onto a concrete floor.
• Protection Ratings: IP40, ensuring resistance against dust and water splashes.


Additional Features

• For Use With: Charge and Communication base, USB Dongle.
• Applications: Ideal for Manufacturing, Retail, and Transportation & Logistics.
• Operating Temperature:
  • Communication Base: Charging: 5°C to 40°C (41°F to 104°F), Non-Charging: 0°C to 50°C (32°F to 122°F)
  • Scanner: Charging: 5°C to 40°C (41°F to 104°F), Non-Charging: -20°C to 50°C (-4°F to 122°F)
• Warranty Duration: 1 year, ensuring reliability and customer satisfaction.
• Power Connector Type: Charge and Communication base, USB Dongle.

Upgrade your operational efficiency with our high-performance wireless scanner, tailored to deliver superior scanning accuracy and seamless connectivity. Ideal for various applications, this scanner is designed to provide reliable performance and durability, making it a valuable addition to your business tools.
