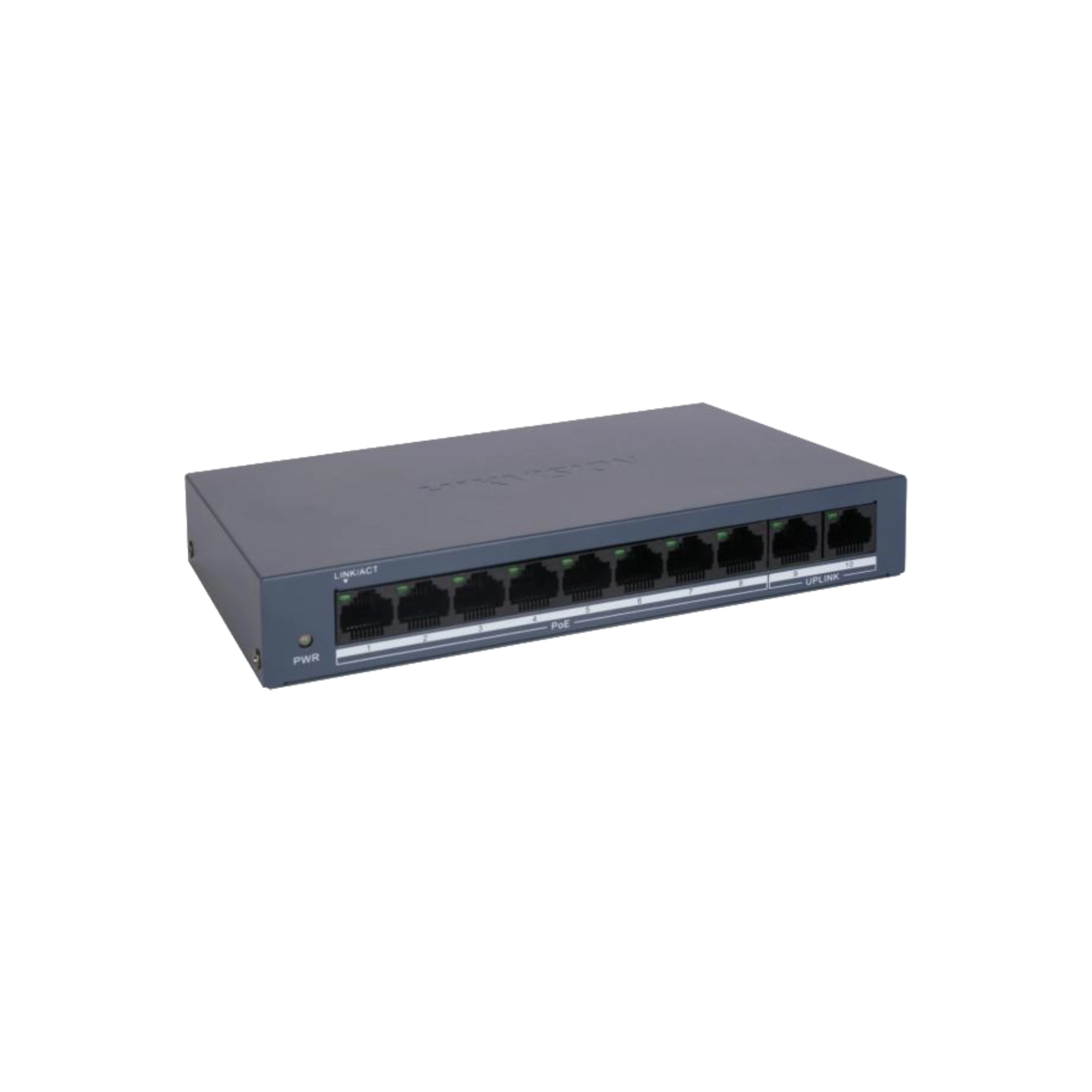

Hikvision DS-3E0110MP-E/M 8 Port Fast Ethernet Unmanaged PoE Switch

HIKVISION DS-3E0110MP-E/M 8 Port Fast Ethernet Unmanaged POE Switch

• The DS-3E0110MP-E/M is an 8-port unmanaged PoE switch from Hikvision, designed to simplify network setup for IP cameras, access points, VoIP phones and other PoE-enabled devices. With both power delivery and data over a single cable, fan-free metal housing, and plug-and-play installation, this switch is ideal for homes, small offices, and small-to-medium surveillance systems. Its compact build — suitable for desk or wall mounting — makes it an easy fit into network racks or tight spaces while keeping power and data delivery efficient and reliable.


Key Specifications

• Ports: 8 × 10/100 Mbps PoE RJ45 ports + 2 × 10/100 Mbps RJ45 ports
• PoE support: IEEE 802.3af/at (PoE on ports 1–8)
• PoE power budget: 60 W total
• Switching mode: Store-and-forward
• Switch capacity: 1.6 Gbps
• Packet forwarding rate: 1.19 Mpps
• MAC address table size: 2,000 entries
• Internal buffer/cache: 768 Kbits
• Auto MDI/MDIX: Yes — no need for crossover cables
• Physical build: Metal housing, fan-free — sturdy and silent
• Installation: Desk-mounted or wall-mounted
• Dimensions: 170.00 mm (W) × 27.60 mm (H) × 93.10 mm (D)
• Net weight: ≈ 0.29 kg
• Power input: 48 V DC, 1.35 A
• Max. power consumption: ~65 W; idle consumption ~2.8 W
• Operating temperature: 0 °C to 40 °C
• Storage temperature: –40 °C to 85 °C
• Surge protection: 2 kV — helps protect connected devices against power spikes
• Use case: Plug-and-play network & power supply for IP devices like cameras, APs, VoIP phones — no complicated setup needed
