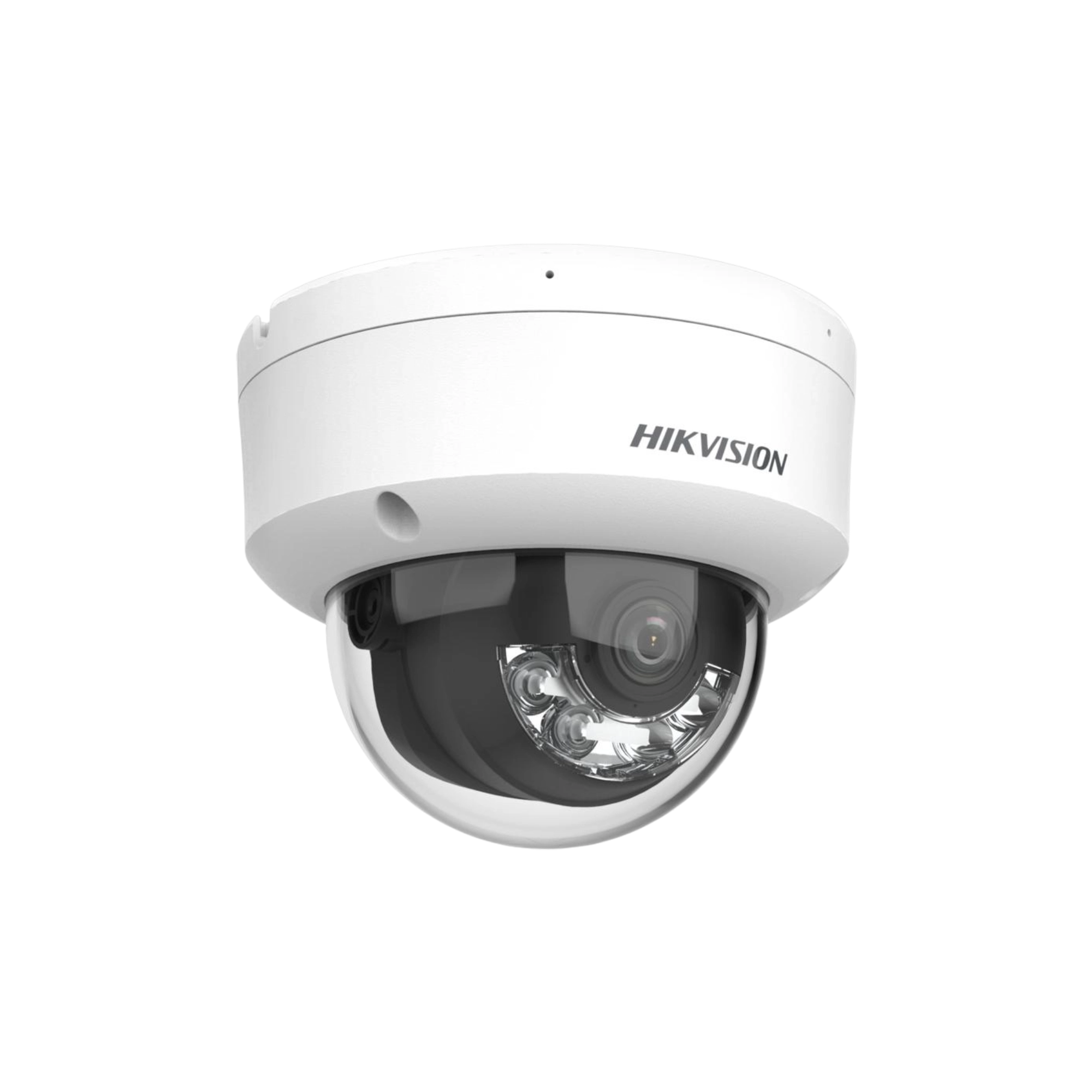

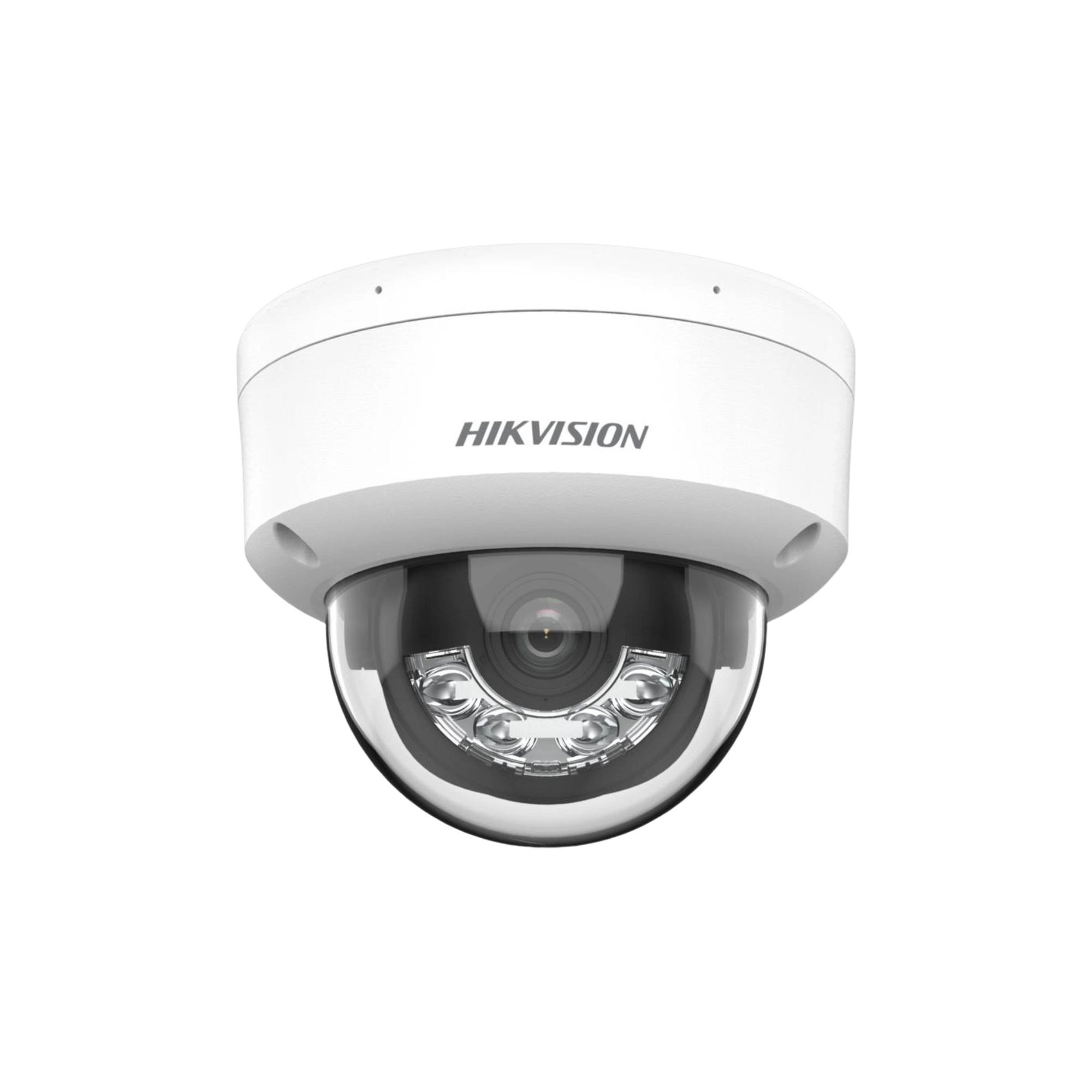

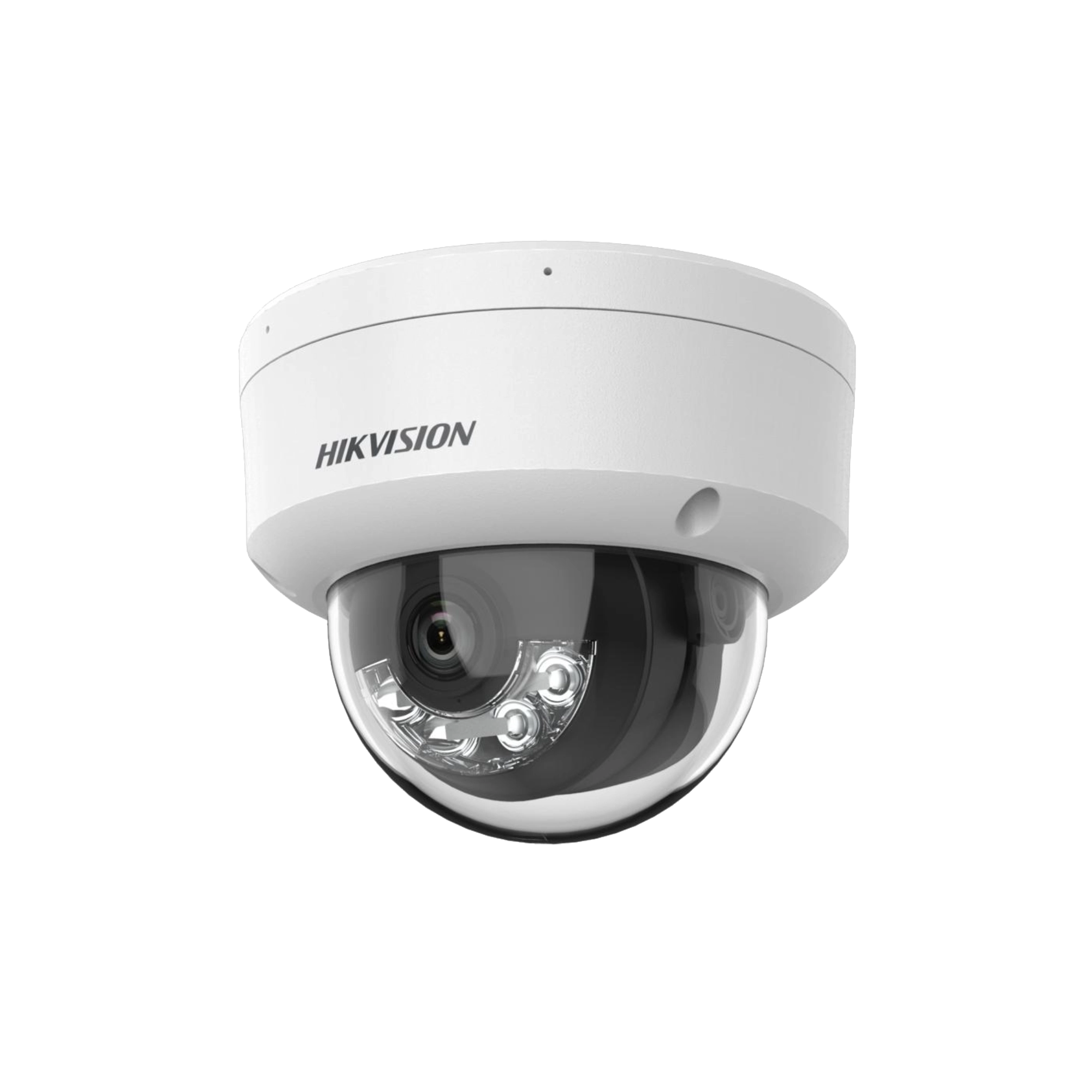

Hikvision DS-2CD1123G2-LIU 2MP Smart Hybrid Light Fixed Dome Network Camera

HIKVISION DS-2CD1123G2-LIU 2MP Smart Hybrid Light Fixed Dome Network Camera Specifications

Camera / Imaging

• 1/2.9" progressive scan CMOS sensor
• Max resolution 1920 × 1080 (2 MP)
• Minimum illumination: 0.005 Lux @ (F1.6, AGC ON); 0 Lux with IR/white light
• Shutter speed: 1/3 s to 1/100,000 s
• Day/Night with IR cut filter
• Fixed lens: 2.8 mm
• FOV (2.8 mm): Horizontal 103°, Vertical 56°, Diagonal 121°
• FOV (4 mm): Horizontal 83°, Vertical 44°, Diagonal 99°


Illumination

• Smart Hybrid Light (IR + white light)
• Up to 30 m illumination range
• Video / Compression
• Supports H.265+, H.265, H.264+, H.264
• Main stream up to 25 fps @ 1080p
• Sub-stream available
• 3D DNR, BLC, HLC, DWDR, ROI


Smart Features

• Human and vehicle classification (Motion Detection 2.0)
• Privacy masking
• Image controls: saturation, brightness, contrast, sharpness, AWB adjustable
• Supports on-board storage up to 512 GB (microSD)


Audio

• Built-in microphone
• Audio formats: G.711 u/alaw, G.722.1, G.726, MP2L2, PCM, AAC-LC


Network

• 1 × RJ45 10/100 Mbps Ethernet
• Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, RTSP, NTP, IGMP, ONVIF, etc.
• Supports Hik-Connect platform


Power/Interface

• Power input: 12 V DC or PoE (802.3af)
• Typical power consumption: around 6 W (varies per mode)


Protection/Environment

• IP67 weatherproof
• IK08 vandal resistant
• Operating temperature: typically -30°C to 60°C
