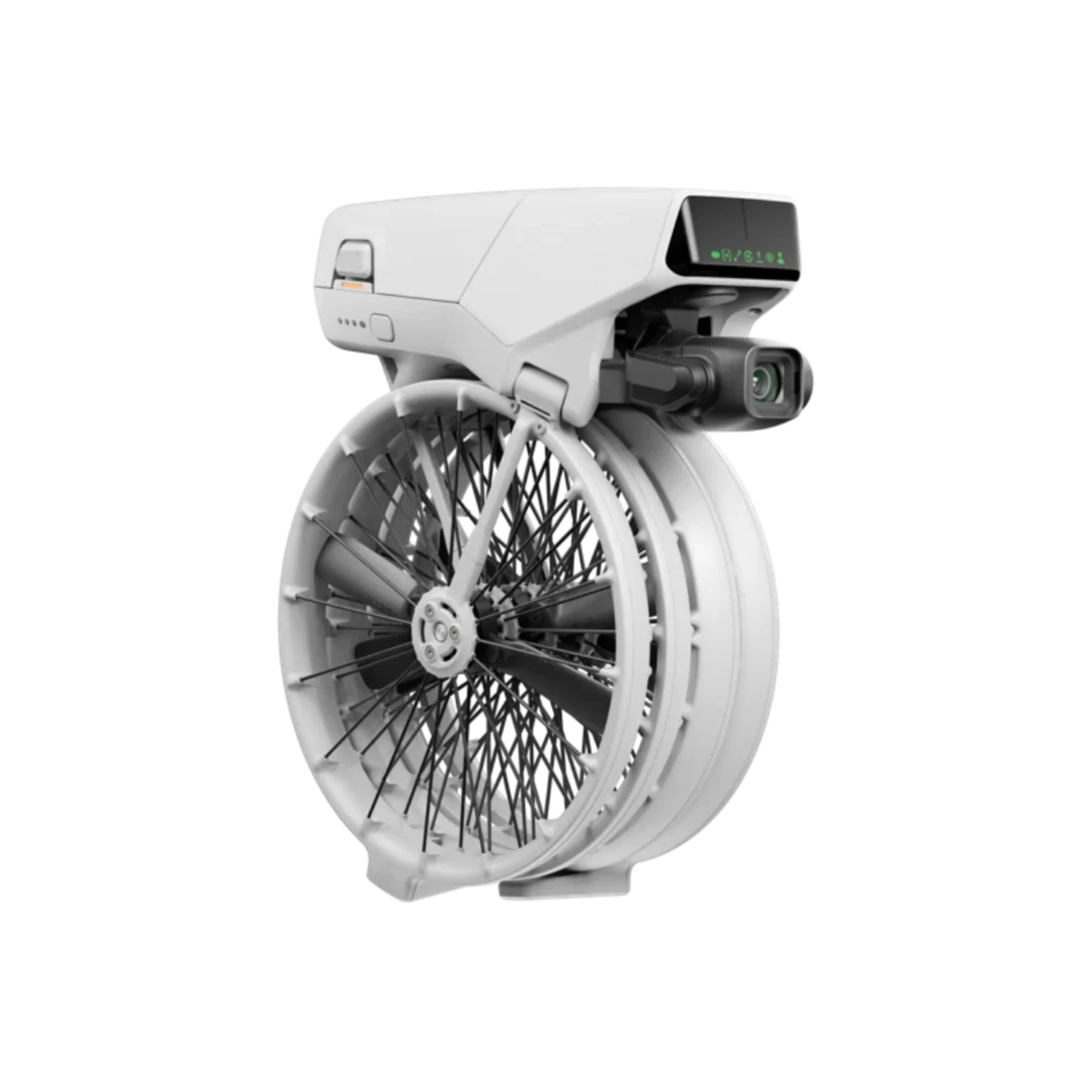

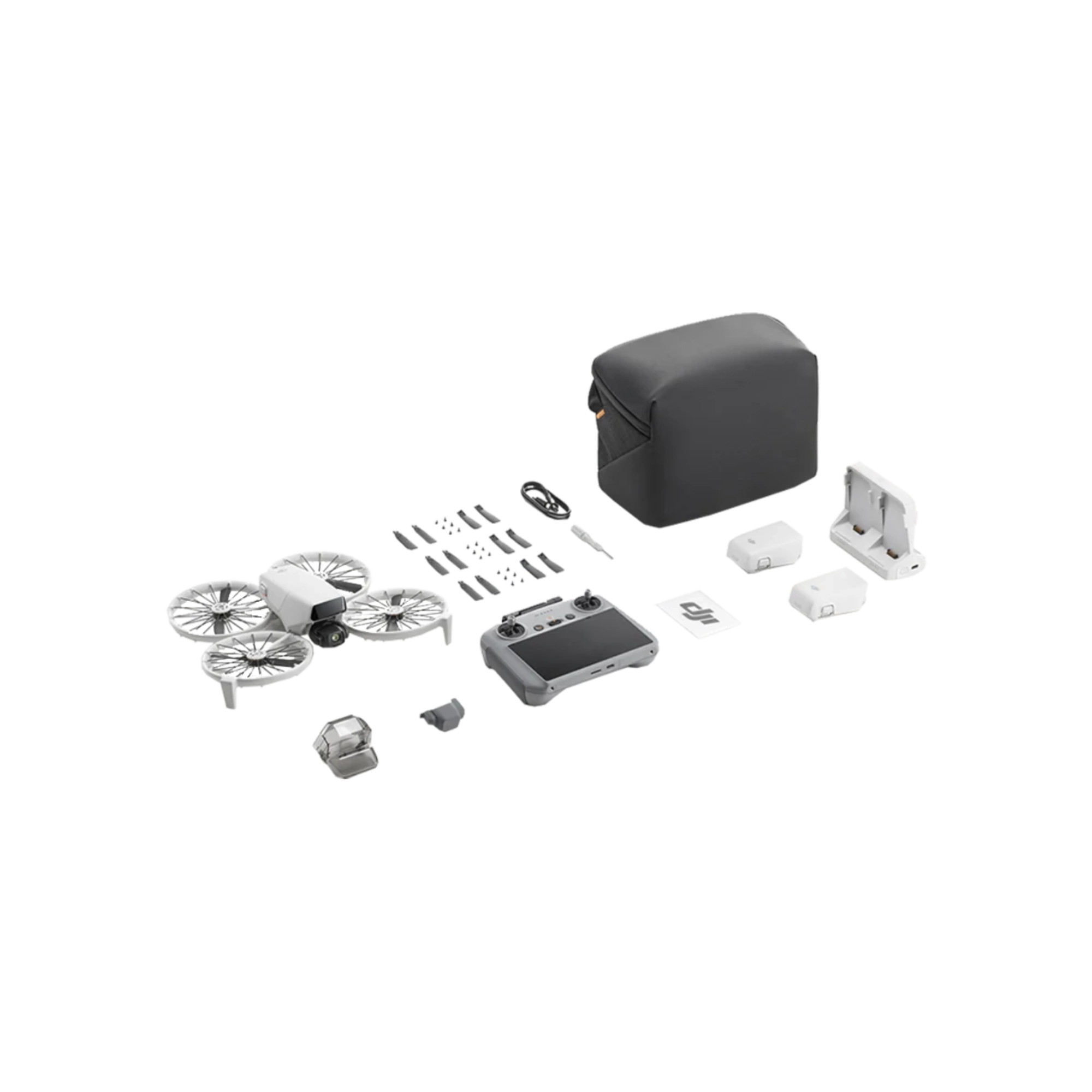

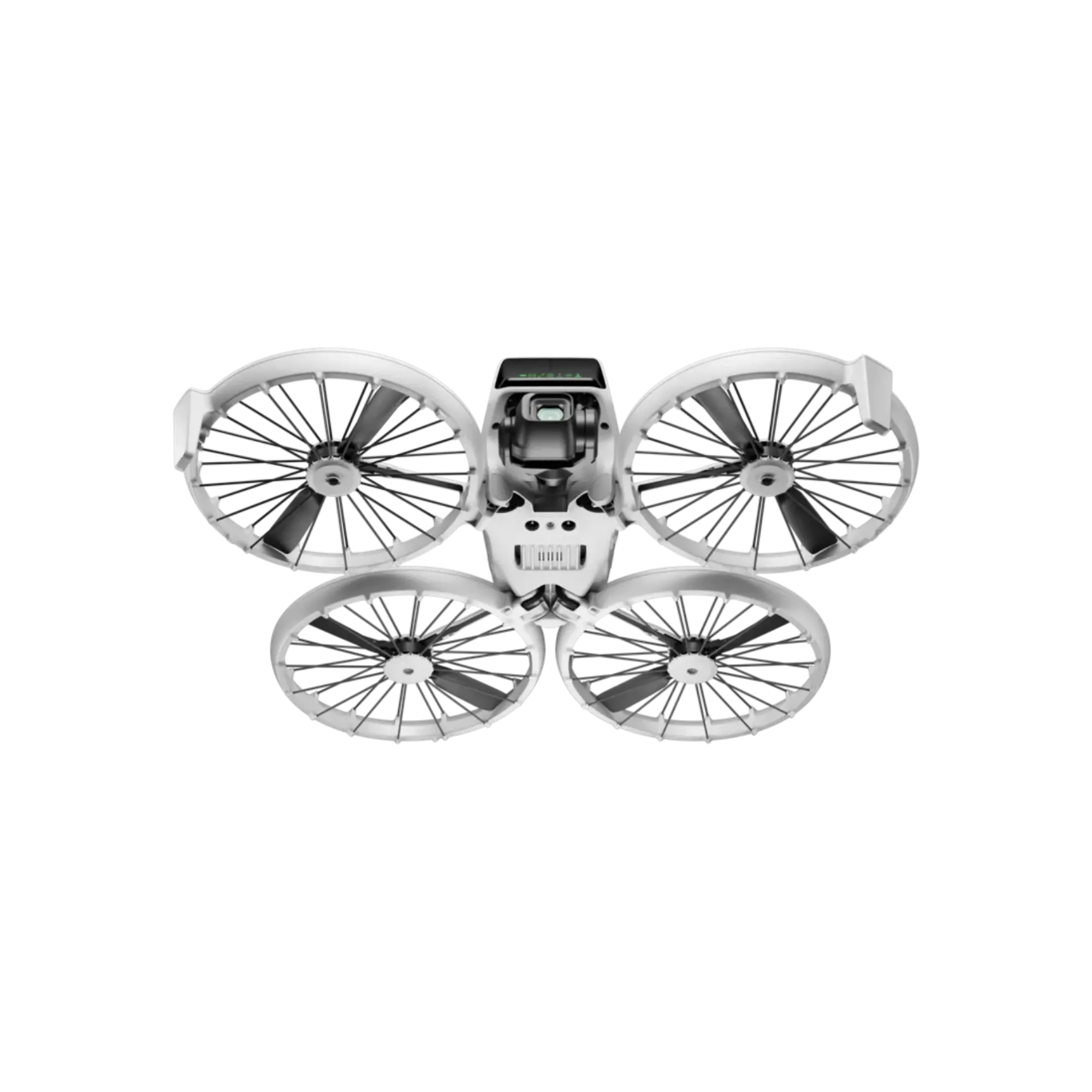

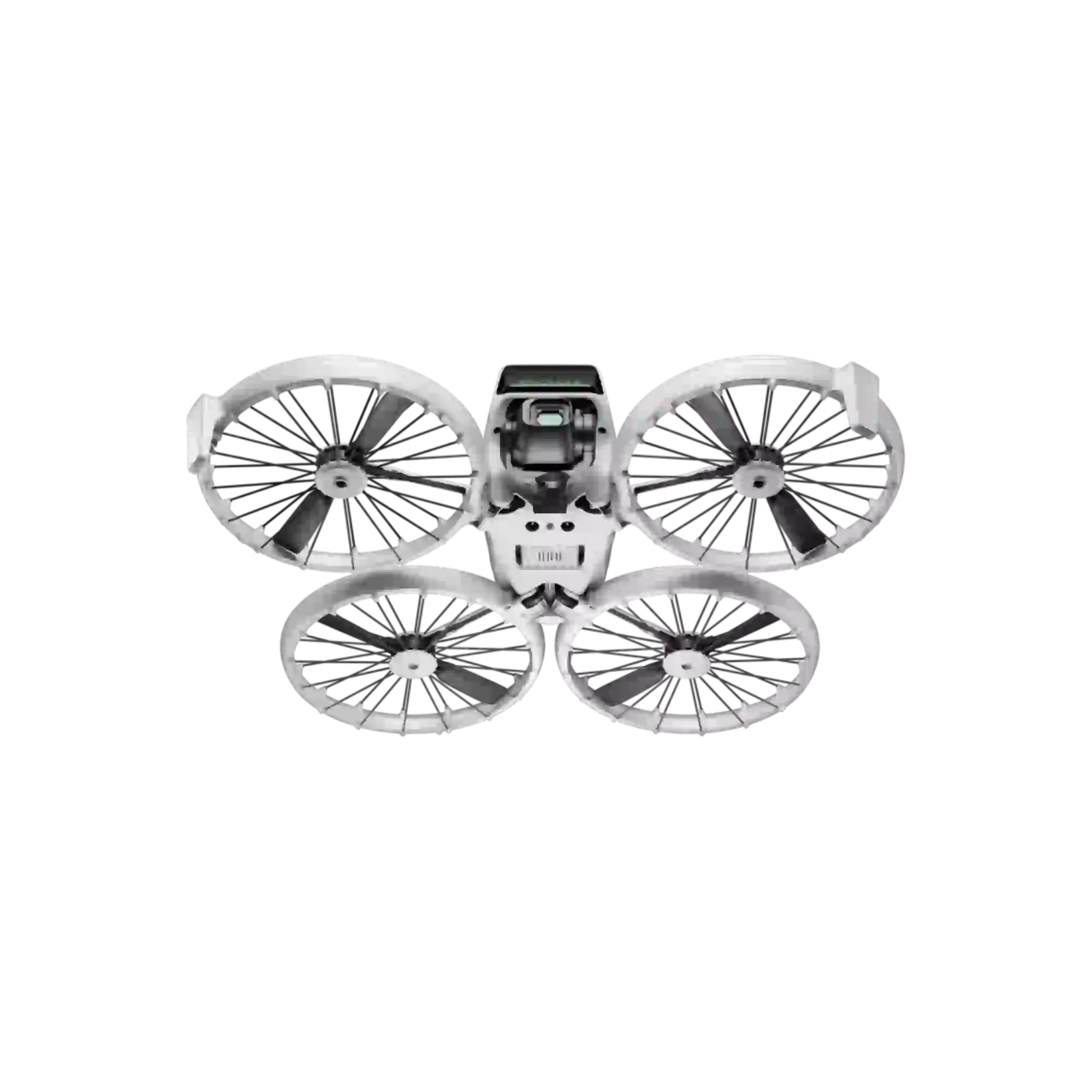

DJI Flip Fly More Combo (DJI RC 2) Technical Specifications

Aircraft Specifications

Product Type: Camera Drone
Takeoff Weight: Under 249g
Folded Dimensions: 136 × 62 × 165 mm
Unfolded Dimensions: 233 × 280 × 79 mm
Maximum Flight Time: 31 minutes
Maximum Horizontal Speed: 12 m/s
Maximum Ascent Speed: 5 m/s
Maximum Descent Speed: 5 m/s
Flight Modes: Sport, Normal, Cine
Propeller Protection: Foldable full-coverage propeller guards
Obstacle Sensing: 3D infrared sensing with automatic braking
Intelligent Features: AI Subject Tracking, FocusTrack, QuickShots

Camera Specifications

Image Sensor: 1/1.3-inch CMOS
Effective Photo Resolution: 48MP
Maximum Image Size: 8064 × 6048 pixels
Field of View: 82.1°
35mm Equivalent Focal Length: 24mm
Aperture: f/1.7
Focus Range: 1m to infinity
Maximum Video Resolution: 4K (3840 × 2160)
Maximum Video Frame Rate: 4K at 100fps
HDR Video: 4K/60fps HDR
Slow-Motion Recording: 4K/100fps
Full HD Recording: 1080p up to 100fps
Vertical Video: 2.7K and Full HD
Maximum Video Bitrate: 150Mbps
Video Format: MP4
Photo Formats: JPEG, DNG (RAW)
Color Profiles: Normal, D-Log M
Digital Zoom: Up to 4×, depending on mode
ISO Range: 100–6400 in Normal video mode


Gimbal and Stabilization

Stabilization: 3-axis mechanical gimbal
Stabilized Axes: Tilt, roll, pan
Controllable Tilt Range: -90° to +35°
Maximum Tilt Control Speed: 100°/s
Angular Vibration Range: ±0.01°

Flight, Sensing and Transmission

Video Transmission System: DJI O4
Maximum Transmission Distance: 13km (FCC), 8km (CE/SRRC/MIC)
Maximum Live-View Quality: 1080p/60fps
Minimum Transmission Latency: Approximately 120ms
Satellite Positioning: GPS, Galileo, BeiDou
Forward Sensing: 3D infrared sensing system
Forward Sensing Range: 0.3–8m
Downward Sensing: Visual and infrared sensors
Maximum Wind Resistance: 10.7m/s (Level 5)
Maximum Takeoff Altitude: 3,000m
Operating Temperature: -10°C to 40°C
Internal Storage: 2GB
External Storage: microSD card

Battery Specifications

Battery Type: Li-ion
Battery Capacity: 3,110mAh
Nominal Voltage: 7.16V
Battery Energy: 22.3Wh
Battery Weight: Approximately 83.5g
Maximum Flight Time: 31 minutes per battery
Maximum Hovering Time: 28 minutes
Charging Temperature: 5°C to 40°C
Charging Time via Aircraft: Approximately 70 minutes
Charging Time via Charging Hub: Approximately 45 minutes for one battery
Two-Battery Parallel Charging: Approximately 70 minutes

DJI RC 2 Remote Controller Specifications

Display Size: 5.5 inches
Display Resolution: 1920 × 1080 pixels
Refresh Rate: 60Hz
Screen Brightness: 700 nits
Touchscreen: 10-point multi-touch
Internal Storage: 32GB
Expandable Storage: microSD card
Wireless Connectivity: Wi-Fi 6, Bluetooth 5.2
Positioning Systems: GPS, BeiDou, Galileo
Battery Capacity: 3,100mAh × 2
Battery Energy: 22.32Wh
Maximum Operating Time: Approximately 3 hours
Charging Port: USB-C
Charging Input: Up to 9V/3A
Charging Time: Approximately 1.5 hours
Weight: Approximately 420g
Dimensions Without Control Sticks: 168.4 × 132.5 × 46.2mm
Dimensions With Control Sticks: 168.4 × 132.5 × 62.7mm
