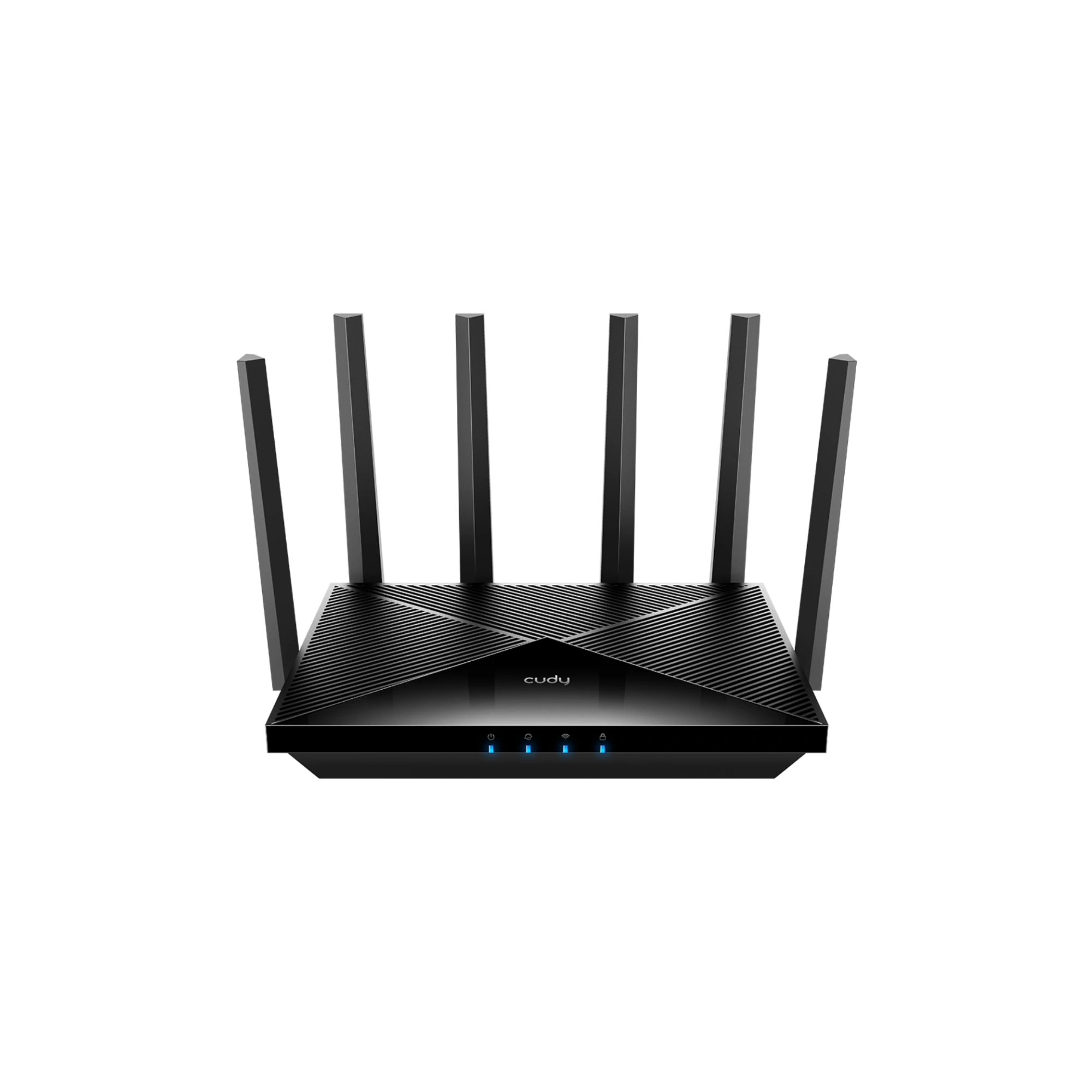

Cudy WR6500 BE6500 Dual Band Gigabit Wi-Fi 7 Router

580g

9.96 x 6 x 1.9 inches

Power On/Off Button
WPS Button
Reset Button

CPU Chipset BCM6766
CPU Details 2.0 GHz Quad-core, ARM Cortex-A7
Memory/Storage Flash/ROM 128 MB (1 Gbit) NAND
DDR/RAM 512 MB (4 Gbit) DDR4

6 Fixed Antennas

5765 Mbps (5 GHz)
688 Mbps (2.4 GHz)

5 GHz, 2.4 GHz

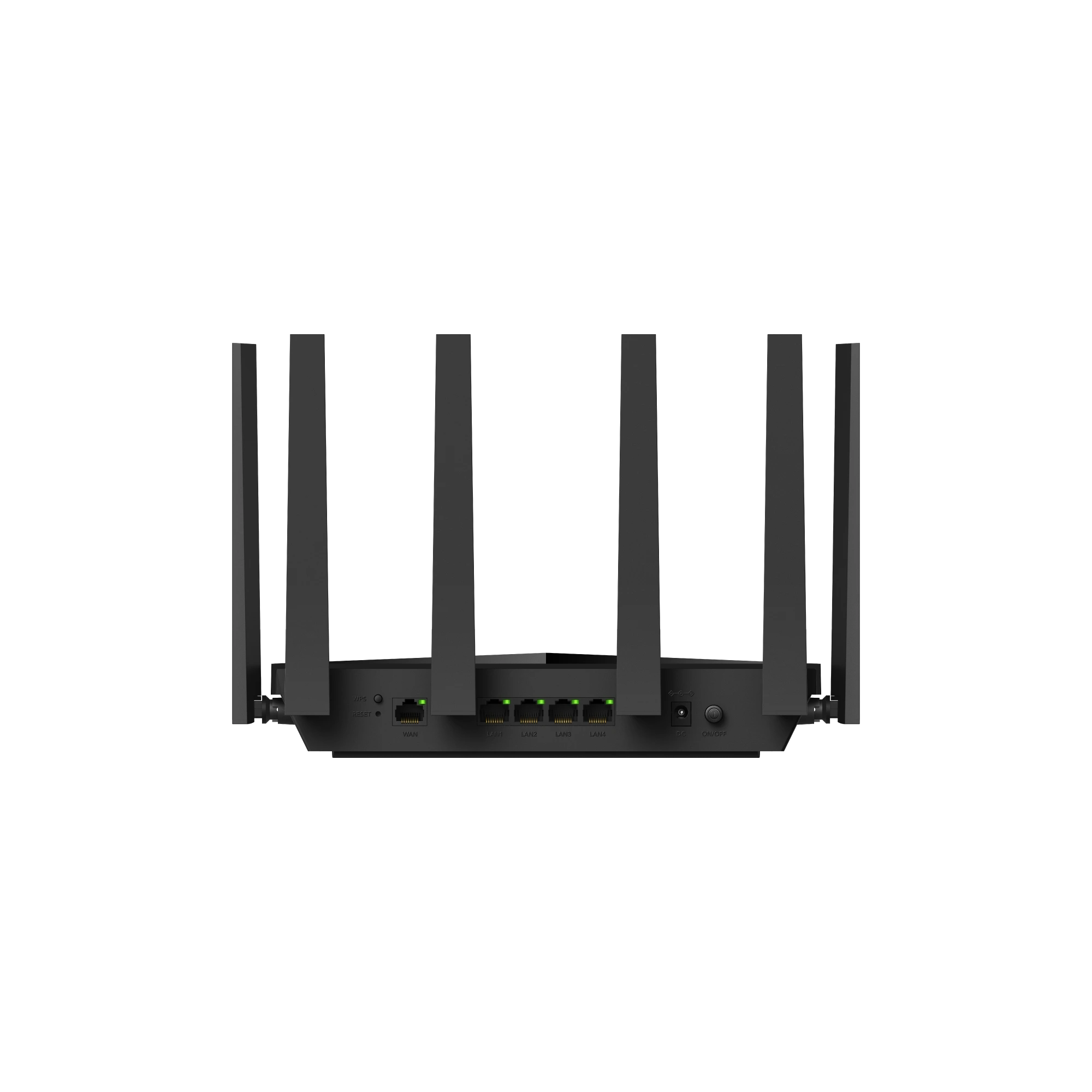

5 x Gigabit RJ45 Ports
1 x WAN port, the rest are LAN ports

WPA/WPA2/WPA3

Wi-Fi 7

Wi-Fi 7 features: OFDMA, MU-MIMO, BSS Color, Multi-RU, Puncturing
Security: WPA/WPA2/WPA3, Guest Wi-Fi, WPS
Modes: Router / Access Point / Range Extender, Cudy Mesh with wired/wireless backhaul
WAN & IP: DHCP, Static, PPPoE, PPTP, L2TP, full IPv4/IPv6 support
IPTV/VLAN support
NAT/Firewall: Port Forwarding, UPnP, DMZ, SPI Firewall, DoS Protection
VPN: WireGuard, OpenVPN, IPsec, L2TP, PPTP, Zerotier (client & server)
DNS: DNS over TLS, custom DNS, rebind protection
Parental controls: profiles, schedules, filtering, device management
Management: Web UI, mobile app, HTTPS, OTA updates, backup/restore
Tools: Wake on LAN, diagnostics, system logs, real-time dashboard
Multi-language support

Input: 100 ~ 240 V, 50/60 Hz AC
Output: 12V 1.5A DC
