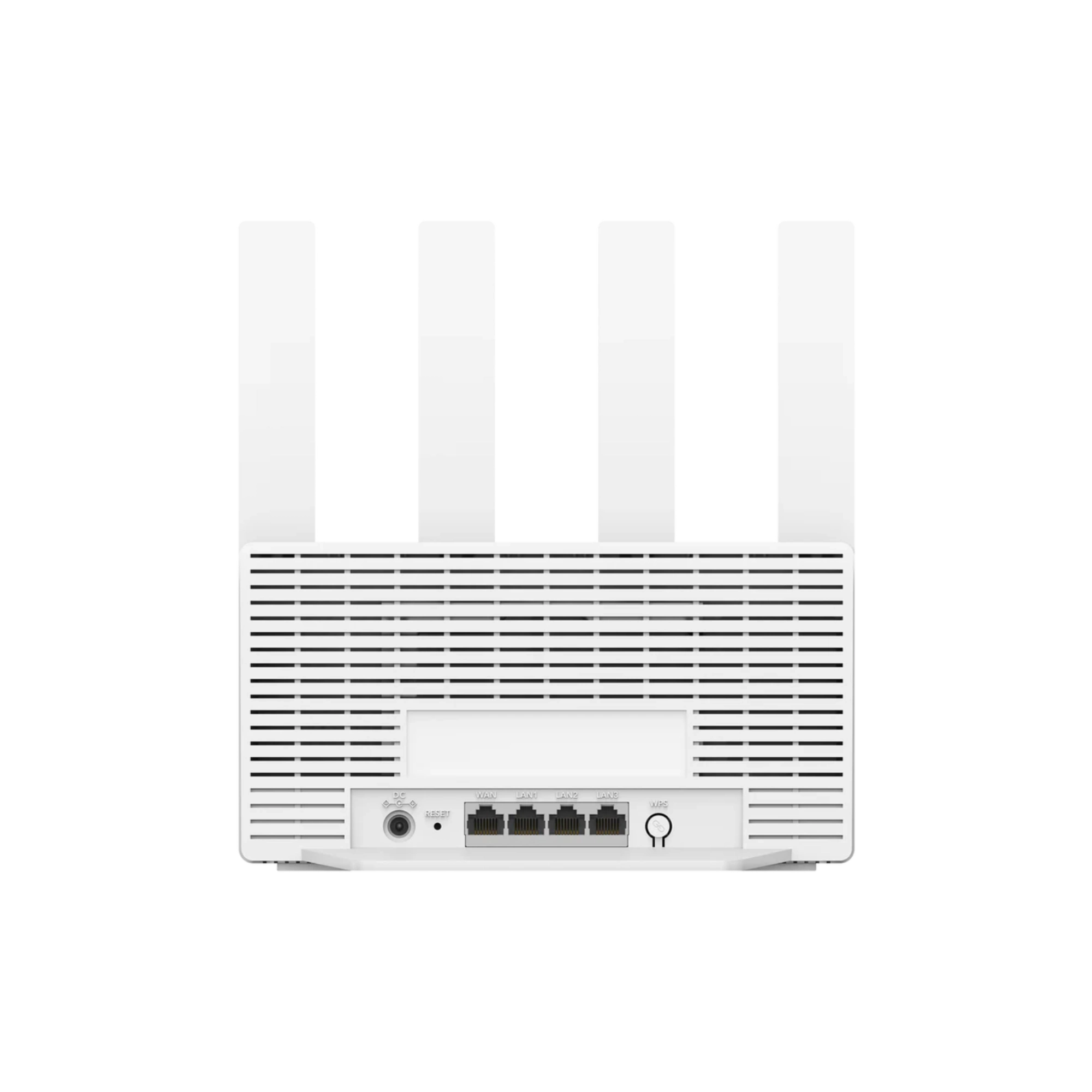

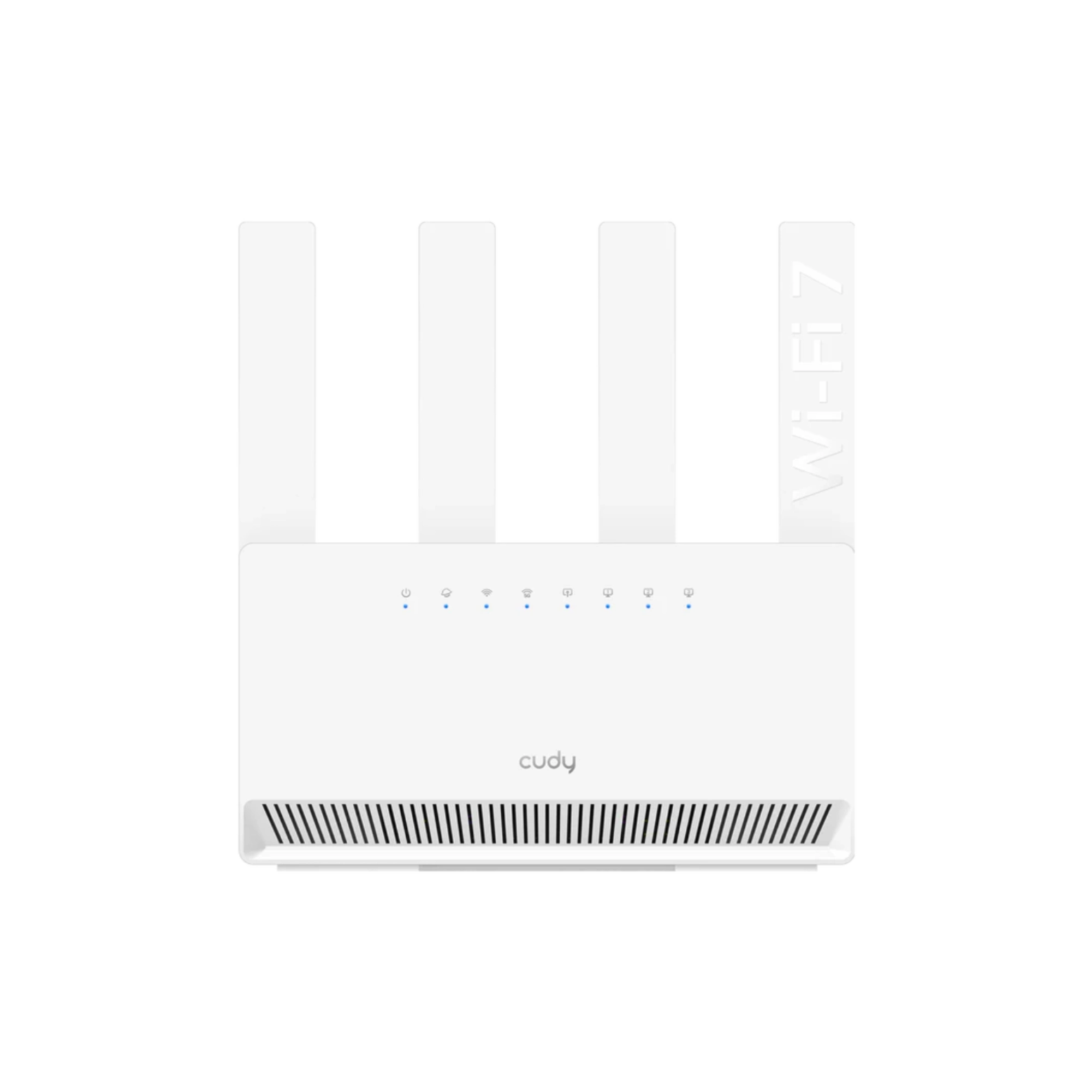

Cudy WR3600E BE3600 Dual Band Gigabit Wi-Fi 7 Router

333.5 g

7.22 x 4.29 x 1.5 inches

WPS Button, Reset Button

CPU:
Chipset: BCM6764
CPU Details: 2.0 GHz Quad-Core, ARM Cortex-A7

Memory/Storage:
Flash/ROM: 128 MB (1 Gbit) NAND
DDR/RAM: 512 MB (4 Gbit) DDR3L

4-Stream Dual-Band Wi-Fi 7
Max Capacity: 512
200 Connected Devices Recommended
Max Wi-Fi Channel Width: 160 MHz
Wi-Fi Security: WPA/WPA2/WPA3
Guest Network: 2.4 GHz, 5 GHz
WPS: True
Covers 130 m² (1,400 ft²)
Cudy Mesh, VPN Server and Client
Cudy App, Cloud Control, VPN Server and Client

Reliability:
Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉)
Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
Humidity: 10% ~ 90% non-condensing
Storage Humidity: 5% ~ 95% non-condensing

4 Fixed Antennas

5 GHz Wi-Fi Speed: 2882 Mbps
2.4 GHz Wi-Fi Speed: 688 Mbps
5 GHz Wi-Fi Streams: 2T2R (2×2 MIMO)
2.4 GHz Wi-Fi Streams: 2T2R (2×2 MIMO)
Wi-Fi Antennas: 4× Fixed
5 GHz Antenna Gain Max: 7.8dBi
2.4 GHz Antenna Gain Max: 5.2dBi

5 GHz Wi-Fi Speed: 2882 Mbps
2.4 GHz Wi-Fi Speed: 688 Mbps

5 GHz, 2.4 GHz

Gigabit RJ45 Ports: 4
Ethernet Notes: 1× WAN port, the rest are LAN ports

LED:
System
Internet
2.4 GHz Wi-Fi
5 GHz Wi-Fi
WAN
LAN

Physical Buttons:
WPS Button
Reset Button

Power Input: DC Jack

WPA/WPA2/WPA3

Wi-FI 7

Wi-Fi 7 efficiency: MLO, Multi-RU, Puncturing, OFDMA, MU-MIMO, BSS Color
Supports up to 512 devices, with recommended “connected clients” ~200
Security: WPA/WPA2/WPA3; guest network; WPS
Operation Modes: Router / Access Point / Range Extender
Mesh features: “Cudy Mesh” (wireless + wired backhaul), multi-band backhaul
WAN & network: DHCP, Static IP, PPPoE, PPTP, L2TP; full IPv4/IPv6 support; IPTV/VLAN; custom TTL; IGMP proxy/snooping
NAT / Firewall / Forwarding: Port forwarding / triggering; UPnP; DMZ; SPI Firewall; DoS protection; block ping; passthroughs (IPSec, PPTP, etc.)
VPN: Server & Client (WireGuard, OpenVPN, IPsec, Zerotier, PPTP, L2TP)
DNS: DNS over TLS; manual/custom DNS; rebind protection; ability to override clients’ DNS
Device / Parental control: scheduling, profiles, web filtering; per-device control (rename, internet on/off, etc.)
System & management: web interface + app control; firmware updates (local & OTA); remote control; backup/restore; diagnostics; system log; real-time dashboards

Input: 100 ~ 240 V, 50/60 Hz AC
Output: 12V 1A DC

Power Methods: DC
DC: 12V 1A
