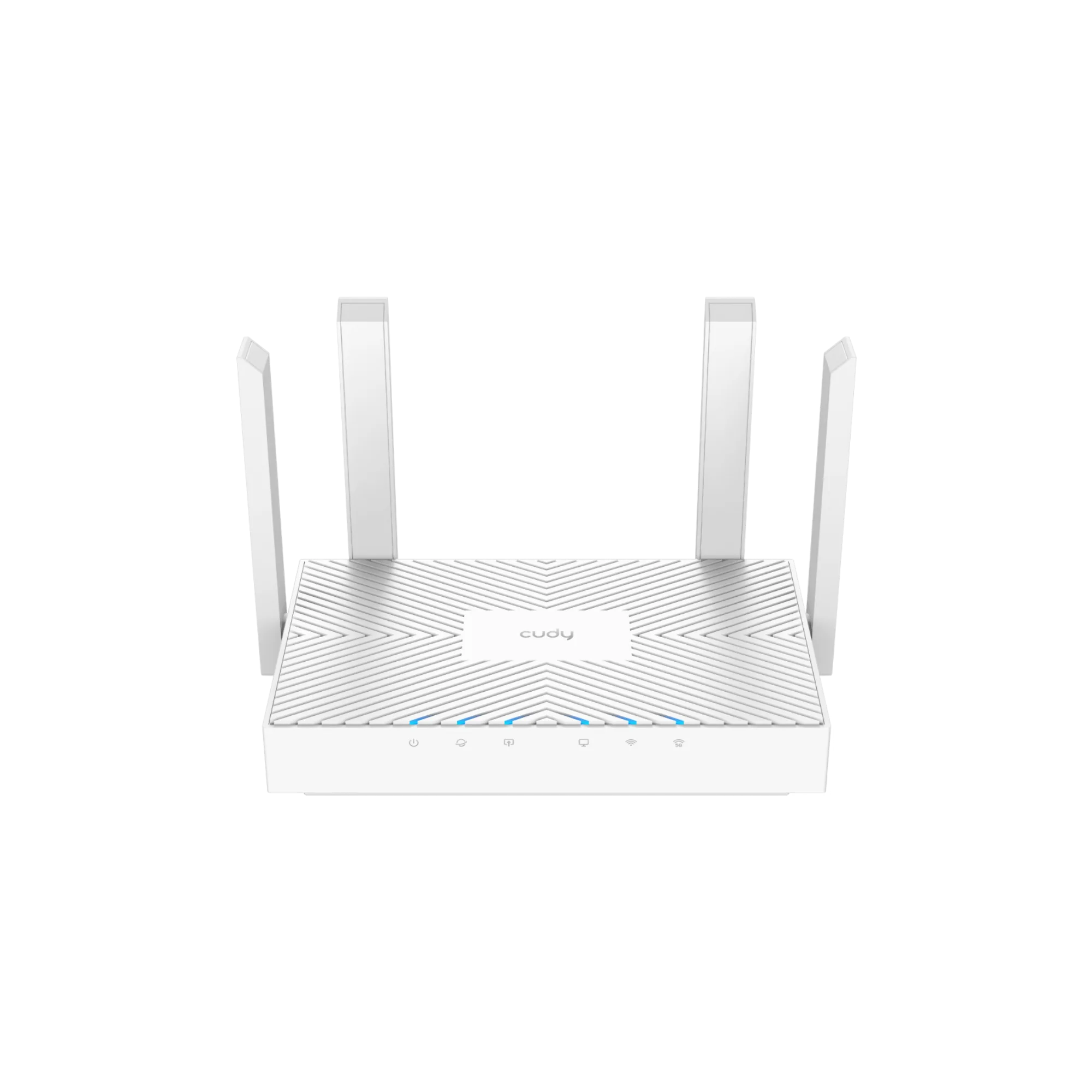

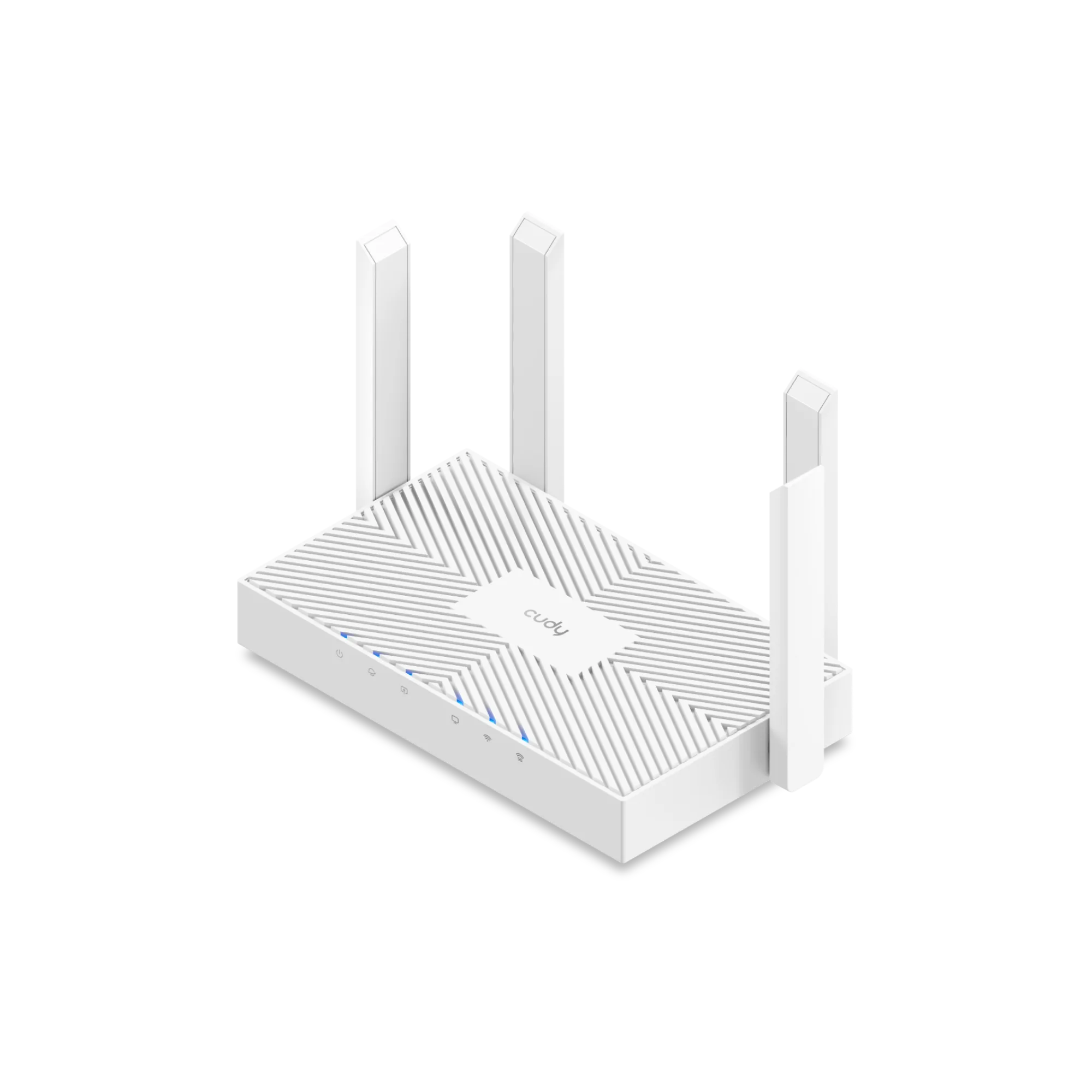

Cudy WR1300E AC1200 Dual Band Gigabit Wi-Fi Router

241.2 g

7.22×4.29×1.38 inches

WPS Button, Reset Button

4 Fixed Antennas

5 GHz Wi-Fi Speed: 867Mbps
2.4 GHz Wi-Fi Speed: 300 Mbps
5 GHz Wi-Fi Streams: 2T2R (2×2 MIMO)
2.4 GHz Wi-Fi Streams: 2T2R (2×2 MIMO)

5 GHz Antenna Gain Max: 5.99dBi
2.4 GHz Antenna Gain Max: 5.24dBi
FEM or PA/LNA: 5 GHz: 2× Internal, 2.4 GHz: 2× Internal
Beamforming: True
Range Performance: Max: 170 m (558 ft)
Indoor WiFi range varies depending on the layout and wall materials. See Wall Performance spec for placement suggestions.
Wall Performance: One wooden walls with thickness < 10 cm (4''), One concrete wall with thickness

867Mbps (5 GHz)
300Mbps (2.4 GHz)

5 GHz, 2.4 GHz

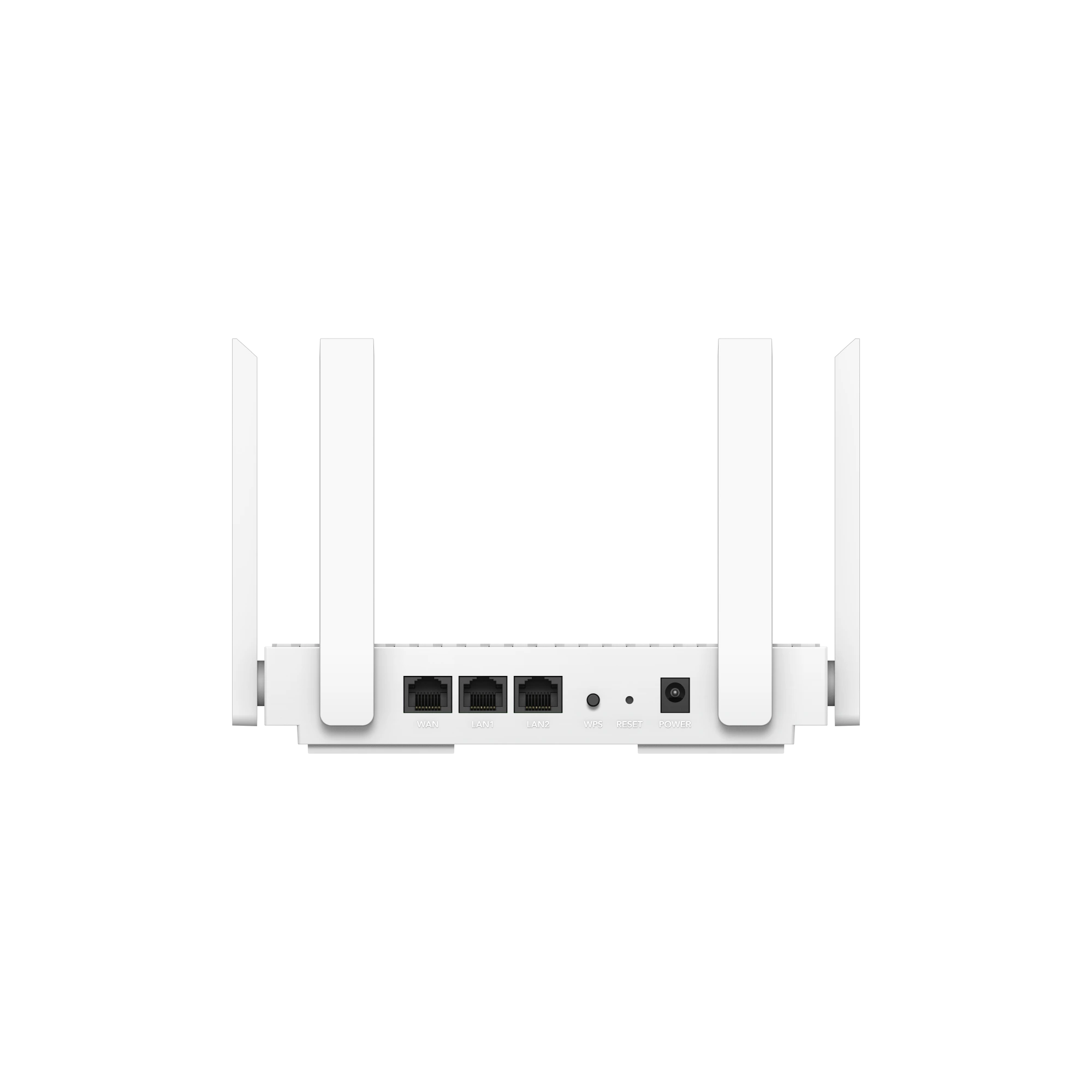

Gigabit RJ45 Ports: 3
Ethernet Notes: 1× WAN port, the rest are LAN ports1× WAN port, the rest are LAN ports

LED:
5 GHz Wi-Fi
2.4 GHz Wi-Fi
LAN
Internet
Power
WPS
System

WPA/WPA2/WPA3

Operation Modes: Router, Access Point, Range Extender, WISP, Client
Security: WPA/WPA2/WPA3, Guest Network, WPS
Firewall: SPI Firewall
VPN: PPTP/L2TP Server and Client
Device Management: Per-device Wi-Fi scheduling
Network Monitoring: Network Status Panel
Beamforming: Enhanced signal directionality
MU-MIMO: Simultaneous data transmission to multiple devices
Cudy App Support: For easy setup and management

Input: 100 ~ 240 V, 50/60 Hz AC
Output: 12V 1A DC

Power Methods: DC
DC: 12V 1A
