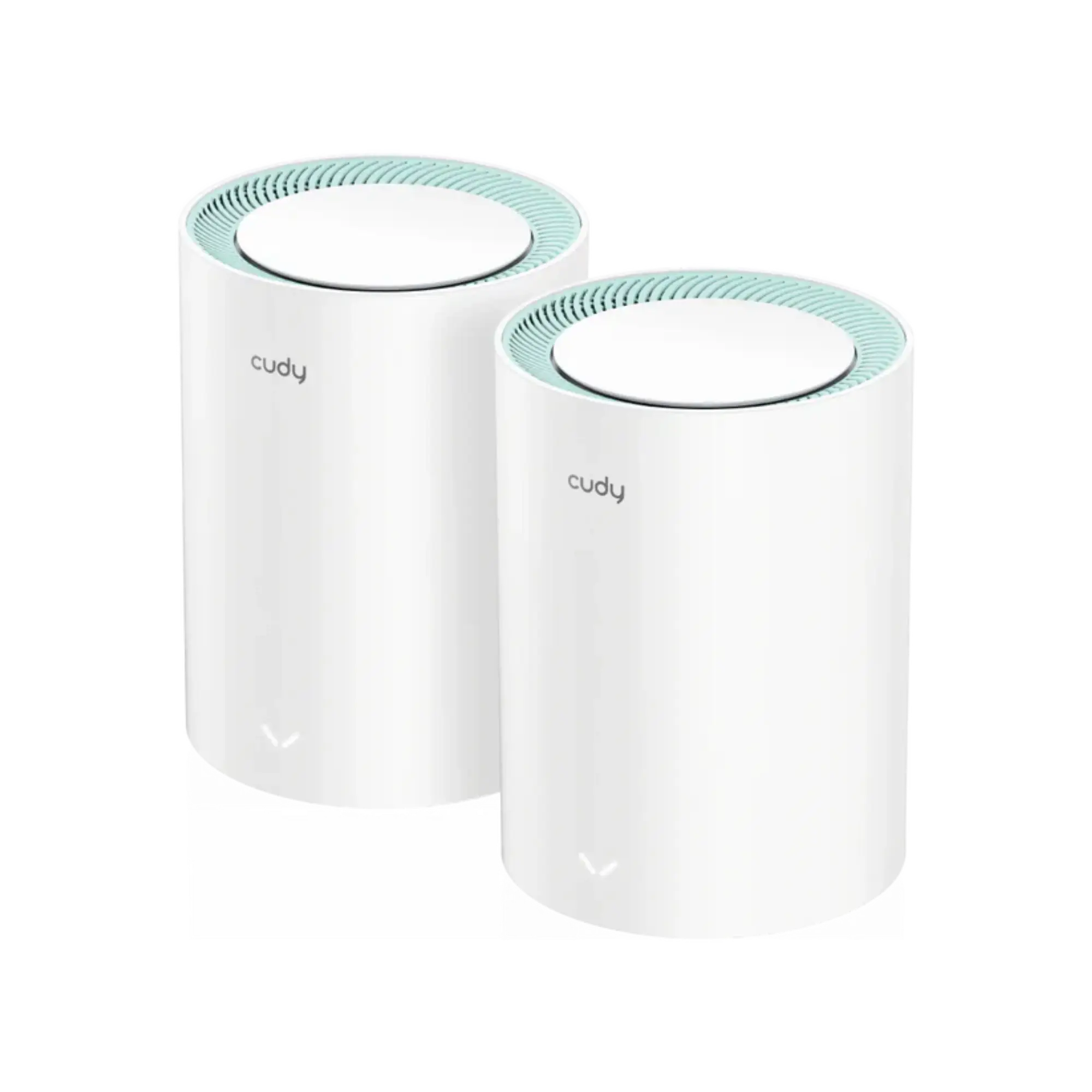

Cudy M1500 AX1500 Dual Band Wi-Fi 6 Mesh Router (2 Pack)

4.33×6.08 inches

WPS Button, Reset Button


Coverage Up to 3200 Sq ft
Processor: 1 GHz Single-Core CPU
Memory/Storage
Flash/ROM: 16 MB (128 Mbit) NOR
DDR/RAM: 128 MB (1 Gbit) DDR3

System:
LED Control: True
Local Control Method:
- Config Web Page
- App Control
Remote Control Method:
- Config Page via HTTPS
- App Control
- TR069/TR098/TR111/TR143/TR181
Firmware Upgrade:
- Local Update
- App (Over the Air)
- Online Update
Reliability:
- Timed Reboot
- Backup and Restore
Diagnostic Tools:
- Diagnosis
- Ping
- Traceroute
- NSLookup
- System Log
Languages:
- English
- Portuguese
- Russian
- Spanish
- Ukrainian
- French
- Simplified Chinese

Utilities:
VPN Client:
- PPTP
- L2TP
- Wireguard
DNS Options:
- Manual DNS
- Rebind Protection
- Override Clients' DNS
Wake on LAN: True
Online Detection: True
Parental Controls: URL Blacklist, Time Schedule, Profiles, Client Management
Cudy Mesh, VPN Client, Cudy App, Cloud Control

Wi-Fi Antennas: 2× Internal
5 GHz Antenna Gain Max: 5.56dBi
2.4 GHz Antenna Gain Max: 4.41dBi

Wi-Fi Standards: Wi-Fi 6
Max Wi-Fi Modulation: 1024-QAM
Wi-Fi Efficiency: Beamforming
Max Capacity: 128
Recommended Client Upper Limit: 60
Max Wi-Fi Channel Width: 80 MHz
Wi-Fi Security: WPA/WPA2/WPA3
Guest Network: 2.4 GHz, 5 GHz
WPS: True

5 GHz Wi-Fi Speed: 1201 Mbps
2.4 GHz Wi-Fi Speed: 300 Mbps

5 GHz, 2.4 GHz


Gigabit RJ45 Ports: 3
Ethernet Notes: 1× WAN port, the rest are LAN ports
Uplink Ethernet Ports:
1-Pack: 57×56×26 cm
22.44×22.05×10.24 inches
LED: System
Physical Buttons:
- WPS Button
- Reset Button
Power Input: DC Jack

QoS: Per-User Rate Limiting
DHCP:
- Address Reservation
- DHCP Client List
- Server
IP Versions: IPv4/IPv6
IPv6 Protocols:
- Relay
- Dynamic (SLAAC/DHCPv6)
- Static (Fixed IP)
- Passthrough
- 464XLAT
- MAP-E
- DS-Lite
IPTV/VLAN:
- Bridge
- Tag VLAN
- VoIP VLAN
- IPTV VLAN
IGMP:
- IGMP Proxy
- IGMP Snooping
Forwarding:
- Port Forwarding
- UPnP
- DMZ
Firewall:
- SPI Firewall
- Block PING

Power Methods: DC
DC Input: 12V 1A
Power Adapter:
- Input: 100 ~ 240 V, 50/60 Hz AC
- Output: 12V 1A DC
Max Power Consumption (W): 10W
