Display


• Brightness (ANSI Lumens): 4000
• Resolution: XGA (1024 × 768)
• Native Aspect Ratio: 4:3
• Contrast Ratio (FOFO): 20,000:1
• Display Color: 30-bit (1.07 billion colors)
• Light Source: Lamp
• Light Source Life:
  • Normal Mode: 6000 hours
  • Eco Mode: 10000 hours
  • SmartEco Mode: 10000 hours
  • LampSave Mode: 15000 hours

The projector delivers bright and clear visuals with XGA resolution and supports over a billion display colors for enhanced image quality. Its long lamp life modes help reduce maintenance and operating costs.


Optical


• Throw Ratio: 1.96 ~ 2.15
• Zoom Ratio: 1.1x
• Lens: F/# = 2.56 ~ 2.68, f = 22 ~ 24.1 mm
• Projection Offset (Full-Height): 110%
• Keystone Adjustment: 1D Auto Vertical ±40°

The optical system provides flexible installation options with zoom capability and automatic vertical keystone correction for properly aligned images.




• Picture Modes:
  • 3D
  • Bright
  • Infographic
  • Presentation
  • Spreadsheet
  • sRGB
  • User 1
  • User 2

Multiple picture presets allow optimized viewing for presentations, spreadsheets, graphics, and multimedia content.


Compatibility


• Resolution Support: VGA (640 × 480) to WUXGA_RB (1920 × 1200)
• Horizontal Frequency: 15K ~ 102KHz

The projector supports a wide range of input resolutions, making it compatible with various PCs, laptops, and multimedia devices.

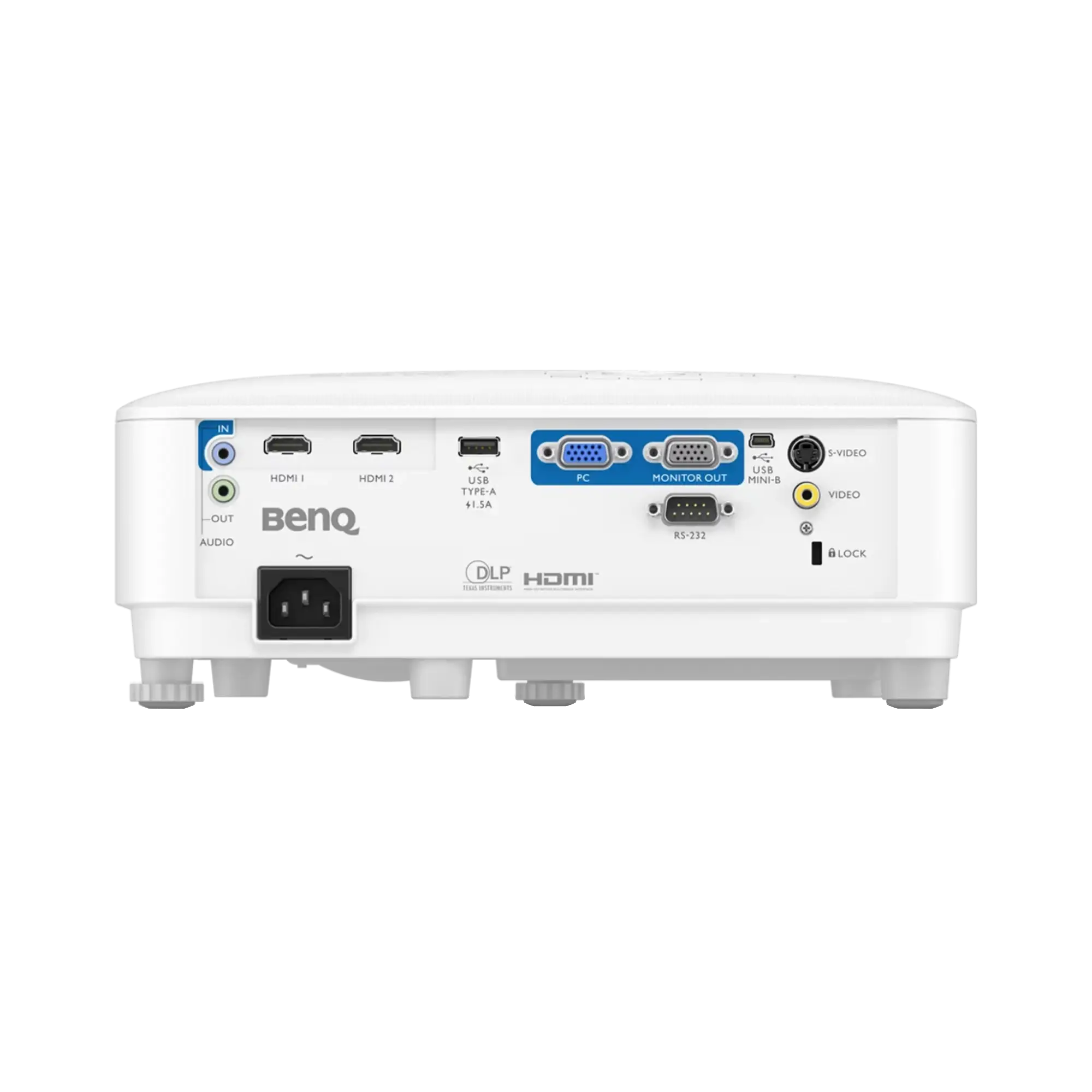

I/O Interface


• PC In (D-sub 15pin): x1
• Monitor Out (D-sub 15pin): x1
• Composite Video In (RCA): x1
• S-Video In (Mini DIN 4pin): x1
• HDMI In:
  • x2
  • HDMI-1 (1.4a/HDCP1.4)
  • HDMI-2 (1.4a/HDCP1.4)
• USB Type-A: x1
• USB Type Mini-B: x1
• RS232 In (DB-9pin): x1

The projector includes multiple connectivity options for computers, video devices, and control systems, ensuring versatile integration.


Audio


• Speaker: 10W ×1
• Audio In (3.5mm Mini Jack): x1
• Audio Out (3.5mm Mini Jack): x1

Built-in audio support with a 10W speaker provides convenient sound output without external speakers for basic presentations.


Environment


• Operating Temperature: 0°C ~ 40°C
• Power Supply: AC 100–240V, 50/60Hz
• Typical Power Consumption (110V): 260W
• Acoustic Noise (Normal/Eco): 34/29 dB

The projector is designed for stable operation across standard environments while maintaining relatively quiet performance in Eco mode.


Accessories


• Remote Control with Battery: RCX016
• Power Cord: x1 (1.8m)
• VGA Cable (D-sub 15pin): x1 (1.5m)
• 3D Glasses: DGD5 (Optional)
• Quick Start Guide: x1
• Warranty Card: Yes
• Universal Ceiling Mount: CM00G3 (Optional)

Included accessories provide essential setup components, while optional accessories support ceiling installation and 3D viewing.


Dimension & Weight


• Dimensions (W × H × D): 296 × 120 × 221 mm
• Net Weight: 2.3 kg

The compact and lightweight design makes the projector easy to transport and install.


Projection System


• Projection Technology: DLP

The DLP projection system delivers reliable image quality with sharp details and consistent color performance.
