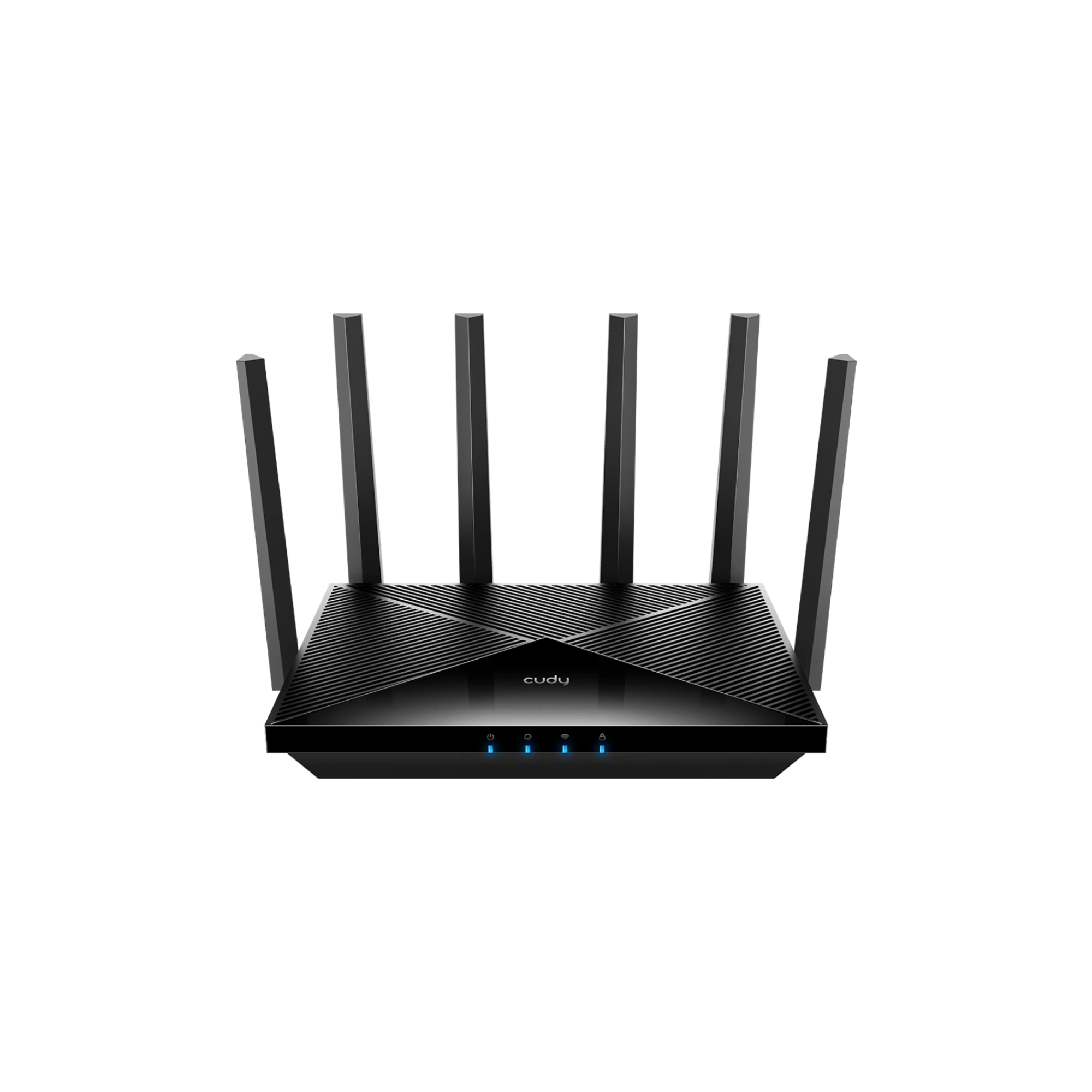

Cudy WR11000 BE11000 2.5G Tri-Band Wi-Fi 7 Mesh Router

• Qualcomm 1.5 GHz Quad-Core CPU
• 6-Stream Tri-Band Wi-Fi 7
• 5.7 Gbps + 4.3 Gbps +688 Mbps
• 4 x 2.5G Ethernet Ports
• Covers 140m² (1,500ft²)
• 200 Connected Devices
• Cudy Mesh, VPN Server and Client
• Cudy App, Cloud Control

Physical Information

643.4g

9.96 x 6 x 1.9 inches

Key Features

Power On/Off Button, WPS Button, Reset Button

6 Fixed Antennas

6 GHz Wi-Fi Streams: 2T2R (2×2 MIMO)
5 GHz Wi-Fi Streams: 2T2R (2×2 MIMO)
2.4 GHz Wi-Fi Streams: 2T2R (2×2 MIMO)
6 GHz Antenna Gain Max: 5dBi
5 GHz Antenna Gain Max: 5dBi
2.4 GHz Antenna Gain Max: 5dBi
FEM or PA/LNA:
6 GHz: 2× High-Power
5 GHz: 2× High-Power
2.4 GHz: 2× Standard
Beamforming: True
Range Performance:
Max: 260 m (853 ft)
Indoor WiFi range varies depending on the layout and wall materials. See Wall Performance spec for placement suggestions.
Wall Performance:
Two wooden walls with thickness < 10 cm (4''), one concrete wall with thickness < 20 cm (7'') or two concrete walls with thickness < 10 cm (4'')

5765 Mbps (6 GHz)
4324 Mbps (5 GHz240 MHz)
2882 Mbps (5 GHz 160 MHz)
688 Mbps (2.4 GHz)

6 GHz, 5 GHz, 2.4 GHz

4 x 2.5G RJ45 Ports
1 x WAN Ports, the rest are LAN ports
LED: System, Internet, Wi-Fi, WPS
Physical Buttons: Power On/Off Button, WPS Button, Reset Button
Power Input: DC Jack

WPA/WPA2/WPA3

Wi-Fi 7

Software

Operation Modes: Router, Access Point, Range Extender, WISP, Client
Security: WPA/WPA2/WPA3, Guest Network, WPS
Firewall: SPI Firewall
VPN: PPTP/L2TP Server and Client
Device Management: Per-device Wi-Fi scheduling
Network Monitoring: Network Status Panel
Beamforming: Enhanced signal directionality
MU-MIMO: Simultaneous data transmission to multiple devices
Cudy App Support: For easy setup and management

Power

Input: 100 ~ 240 V, 50/60 Hz AC
Output: 12V 2A DC

DC Input 12V 2A
