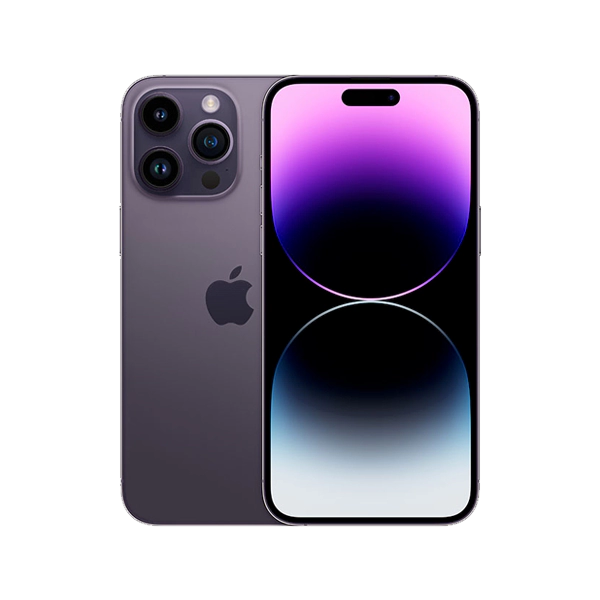

iPhone 14 Pro Max - Official

The iPhone 14 Pro Max is the most advanced iPhone yet, with a powerful A16 Bionic chip, a stunning Super Retina XDR display with ProMotion, and a triple-lens rear camera system with a 48MP wide camera.

Physical Specification

Glass front (Corning-made glass), glass back (Corning-made glass), stainless steel frame

240 g

160.7 x 77.6 x 7.9 mm (6.33 x 3.06 x 0.31 in)

Network

Nano-SIM and eSIM - International
Dual eSIM with multiple numbers - USA
Dual SIM (Nano-SIM, dual stand-by) - China

HSPA, LTE, 5G, EV-DO Rev.A 3.1 Mbps

GSM 850 / 900 / 1800 / 1900 - SIM 1 & SIM 2 (dual-SIM)
CDMA 800 / 1900

HSDPA 850 / 900 / 1700(AWS) / 1900 / 2100
CDMA2000 1xEV-DO

1, 2, 3, 4, 5, 7, 8, 12, 13, 17, 18, 19, 20, 25, 26, 28, 30, 32, 34, 38, 39, 40, 41, 42, 46, 48, 66 - A2894, A2896
1, 2, 3, 4, 5, 7, 8, 11, 12, 13, 14, 17, 18, 19, 20, 21, 25, 26, 28, 29, 30, 32, 34, 38, 39, 40, 41, 42, 46, 48, 53, 66, 71 - A2651, A2893
1, 2, 3, 4, 5, 7, 8, 12, 13, 17, 18, 19, 20, 25, 26, 28, 30, 32, 34, 38, 39, 40, 41, 42, 46, 48, 66 - A2895

1, 2, 3, 5, 7, 8, 12, 20, 25, 26, 28, 30, 38, 40, 41, 48, 66, 70, 77, 78, 79 SA/NSA/Sub6 - A2894, A2896
1, 2, 3, 5, 7, 8, 12, 14, 20, 25, 26, 28, 29, 30, 38, 40, 41, 48, 53, 66, 70, 71, 77, 78, 79, 258, 260, 261 SA/NSA/Sub6/mmWave - A2651
1, 2, 3, 5, 7, 8, 12, 14, 20, 25, 26, 28, 29, 30, 38, 40, 41, 48, 53, 66, 70, 71, 77, 78, 79 SA/NSA/Sub6 - A2893
1, 2, 3, 5, 7, 8, 12, 20, 25, 26, 28, 30, 38, 40, 41, 48, 66, 70, 77, 78, 79 SA/NSA/Sub6 - A2895

Display

6.7 inches, 110.2 cm2 (~88.3% screen-to-body ratio)

LTPO Super Retina XDR OLED, 120Hz, HDR10, Dolby Vision, 1000 nits (typ), 2000 nits (HBM)

1290 x 2796 pixels, 19.5:9 ratio (~460 ppi density)

Processor

Hexa-core (2x3.46 GHz Everest + 4x2.02 GHz Sawtooth)

Apple GPU (5-core graphics)

Apple A16 Bionic (4 nm)

Memory

128GB 6GB RAM, 256GB 6GB RAM, 512GB 6GB RAM, 1TB 6GB RAM
NVMe

No

Main Camera

4K@24/25/30/60fps, 1080p@25/30/60/120/240fps, 10-bit HDR, Dolby Vision HDR (up to 60fps), ProRes, stereo sound rec.

48 MP, f/1.8, 24mm (wide), 1/1.28", 1.22µm, dual pixel PDAF, sensor-shift OIS
12 MP, f/2.8, 77mm (telephoto), 1/3.5", 1.0µm, PDAF, OIS, 3x optical zoom
12 MP, f/2.2, 13mm, 120˚ (ultrawide), 1/2.55", 1.4µm, dual pixel PDAF
TOF 3D LiDAR scanner (depth)

Dual-LED dual-tone flash, HDR (photo/panorama)

Selfie Camera

4K@24/25/30/60fps, 1080p@25/30/60/120fps, gyro-EIS

12 MP, f/1.9, 23mm (wide), 1/3.6", PDAF, OIS
SL 3D, (depth/biometrics sensor)

HDR

OS

iOS 16, upgradable to iOS 17.6.1, planned upgrade to iOS 18

Connectivity

Yes

Lightning, USB 2.0

No

Wi-Fi 802.11 a/b/g/n/ac/6, dual-band, hotspot

5.3, A2DP, LE

No

Features

Face ID, accelerometer, gyro, proximity, compass, barometer
Ultra Wideband (UWB) support
Emergency SOS via satellite (SMS sending/receiving)

Battery

Li-Ion 4323 mAh, non-removable (16.68 Wh)

Wired, PD2.0, 50% in 30 min (advertised)
15W wireless (MagSafe)
15W wireless (Qi2) - requires iOS 17.2 update

Test

Yes, with stereo speakers
